GOLUB 4551

Ultra-compact Rugged PC for in-vehicle applications • AMD Ryzen™ V1605B

GOLUB 4551 is the next generation ultra-compact, fanless in-vehicle controller offering performances never-seen-before in this form factor.

Featuring AMD Ryzen™ Embedded V1000 4-core/ 8-thread processor(V1605B), GOLUB 4551 delivers up to 3x times the CPU performance compared to previous GOLUB series. It combines finesse performance, extraordinary reliability and affordability for versatile in-vehicle applications.

GOLUB 4551 offers four 802.3at PoE+ ports to supply 25W power to device such as IP cameras. As wireless connectivity is essential for modern invehicle application, the Industrial Box-PC GOLUB 4551 with built-in one M.2 and three mini-PCIe are more applicable for in-vehicle use nowadays. It also integrates CAN bus for in-vehicle communication, and isolated DIO for sensor/ actuator control.

Combining ignition power control and wide-range DC input along with superior performance, GOLUB 4551 can provides perfect solution for all your in-vehicle application needs in an extremely compact size!

Key facts	• AMD Ryzen™ V1605B • Up to 16GB DDR4 • Fanless • PoE+, DIO, CAN • In-Vehicle Computing
Protection class	IP20
CPU	AMD Ryzen™ V1605B, 4x 2GHz/3.6GHz
Chipset	SoC
RAM	Up to 16GB DDR4-2400 SDRAM by one SODIMM sockets
Storage interface	1x M.2 2280 M key NVMe socket (PCIe Gen3/ x2) installation • 1x full-size mSATA port

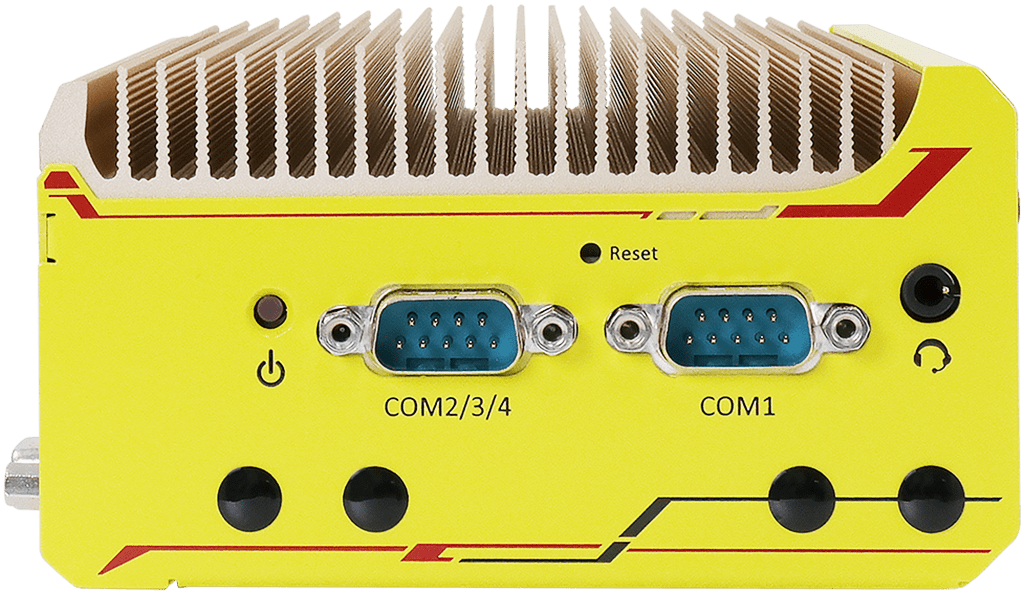

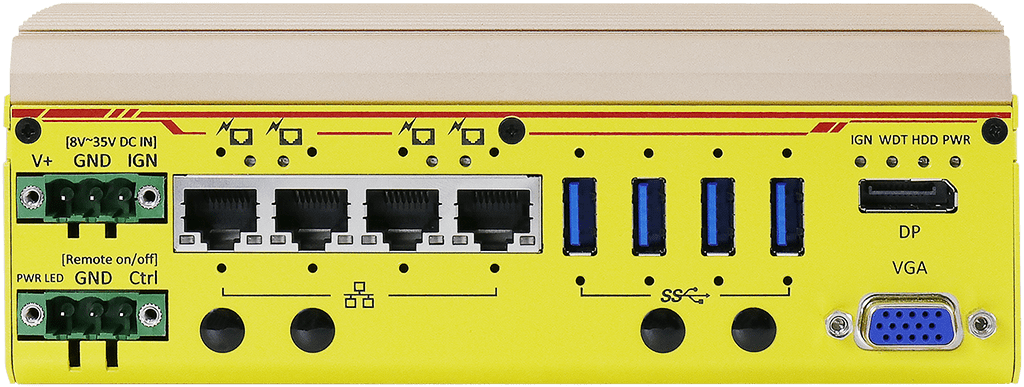

Ports	4x GigE, Intel® I350-AM4 • 4x IEEE 802.3at Gigabit PoE+, Intel® I350-AM4 • 4x USB 3.1 Gen1, with screw-lock • 1x software-programmable RS-232/ 422/ 485 ports (COM1) • 3x 3-wire RS-232 ports (COM2/ 3/ 4) or 1x RS-422/ 485 port (COM2) • 1x VGA, supporting 1920 x 1200 resolution • 1x DisplayPort, supporting 4096 x 2160 resolution • 1x 3.5 mm jack for mic-in and speaker-out
PCI / PCIe / mini-PCIe	1x full-size mini-PCIe socket with internal SIM socket • 1x MezIO™ expansion interface for MezIO® modules • 1x M.2 2280 M key NVMe socket (PCIe Gen3 x2) for NVMe SSD installation
DIO	4x Isolated DI and 4x Isolated DO
Cooling System	Passive, fanless
Mounting	Wall mounting • option: DIN rail mounting
Power input	1x 3-pin pluggable terminal block for ignition signal and 8V to 35V DC input • 1x3-pin pluggable terminal block for remote control and PWR LED output
Power consumption	AMD Ryzen™ V1605B, 4GB RAM and 1x SSD: max. ca. 20W
Operating system	Windows® 10
Operating temperature	-40°C to 70°C
Storage temperature	-40° to 85°C
Storage humidity	10% to 90%, non-condensing
Vibration	IEC61373:2010, Category 1, Class B Body mounted (part of EN50155)
Shock	IEC61373:2010, Category 1, Class B Body mounted (part of EN50155)
Certificate	EN 50155, EN45545, E-Mark for in-vehicle applications CE/FCC Class A, according to EN 55032 & EN 55024
Weight / kg	1.3

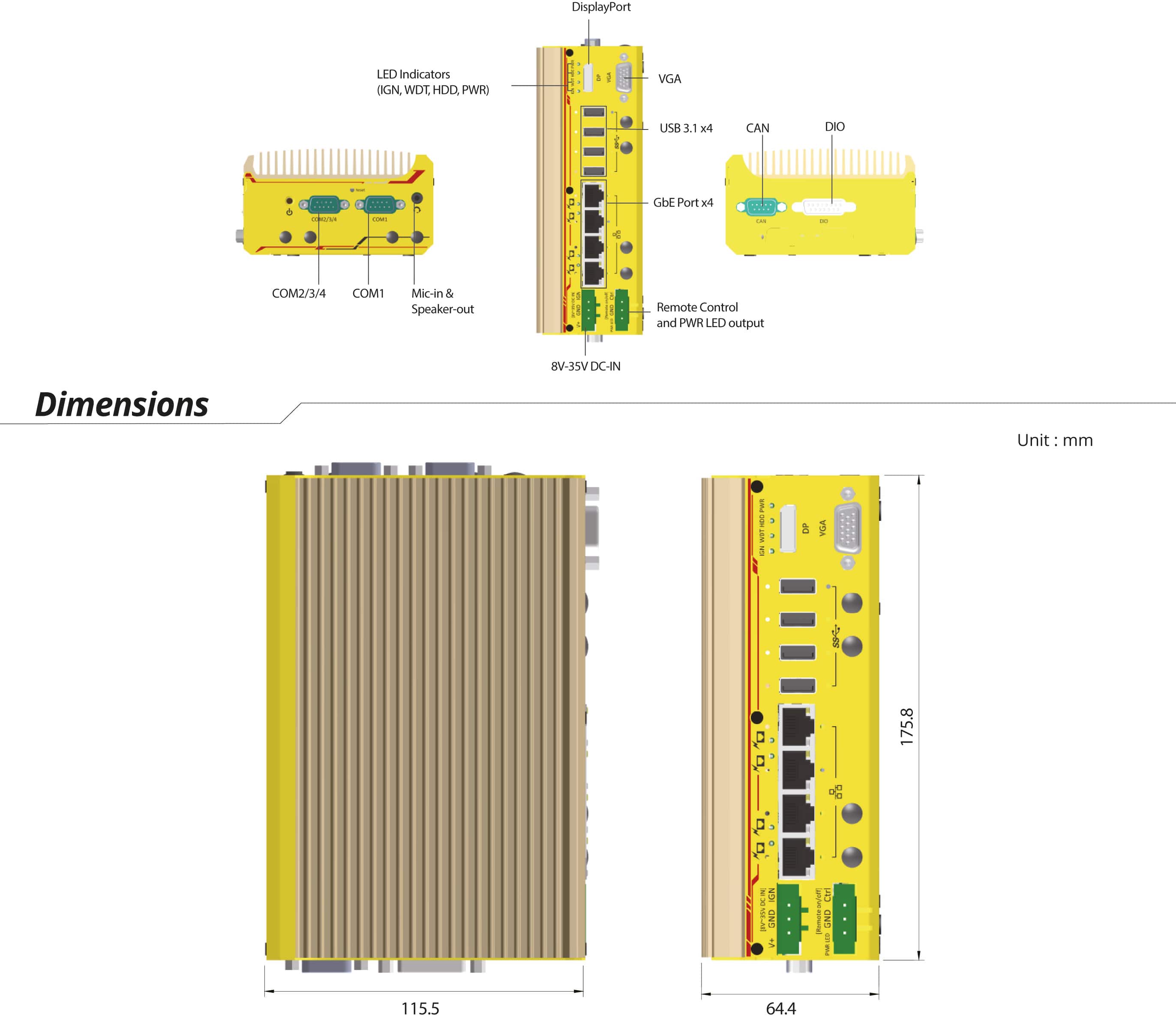

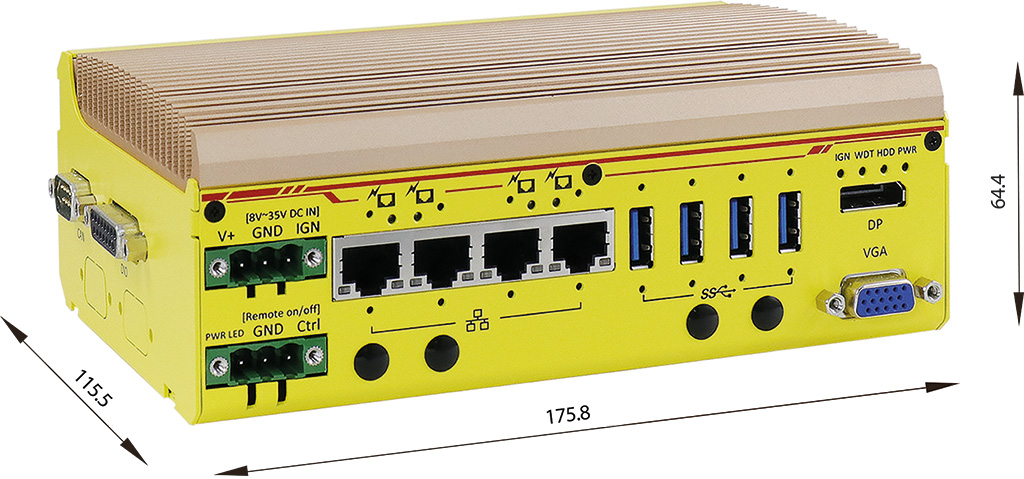

Dimensions / mm	64.4 x 115.5 x 175.8
Scope of delivery	3-pin Terminal connector • Wall mounting kit • Driver CD
