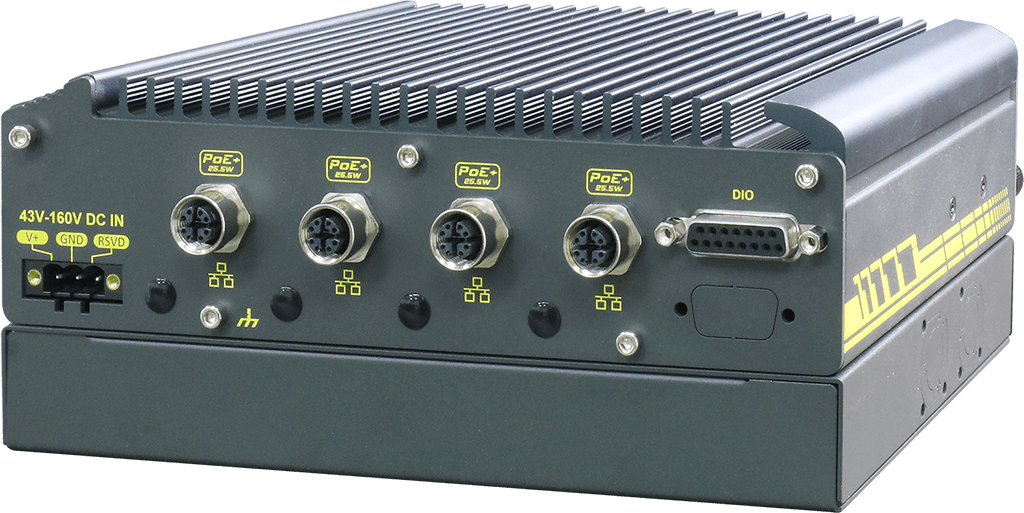

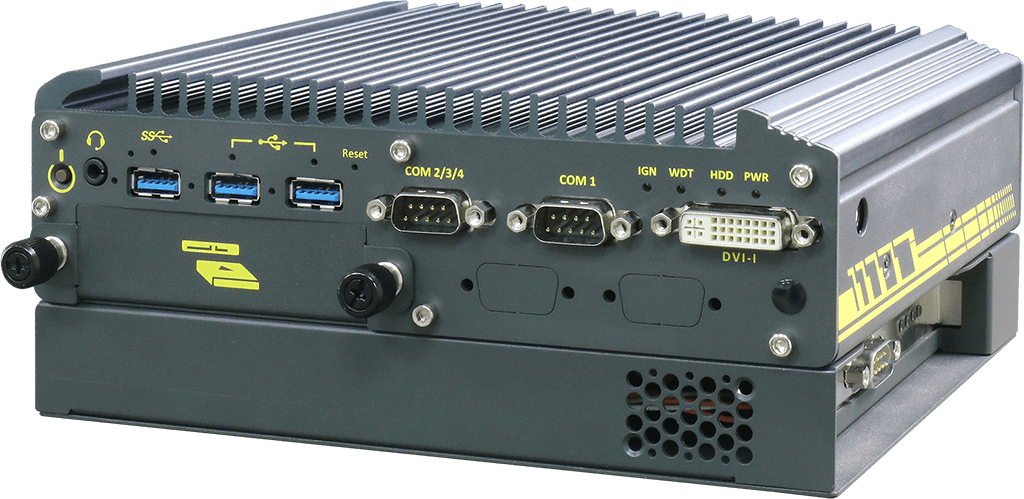

GOLUB 2615RL | Intel® Atom® x6425E [w/2500Ws UPS]

EN50155 & EN45545 Embedded PC for railway applications • Intel® Atom® x6425E

Skip image gallery
_Box-PC_GOLUB 2615RL | Intel® Atom® x6425E [w/2500Ws UPS]
_Box-PC_GOLUB 2615RL | Intel® Atom® x6425E [w/2500Ws UPS]
_Box-PC_GOLUB 2615RL | Intel® Atom® x6425E [w/2500Ws UPS]
_Box-PC_GOLUB 2615RL | Intel® Atom® x6425E [w/2500Ws UPS]
_Box-PC_GOLUB 2615RL | Intel® Atom® x6425E [w/2500Ws UPS]
_Box-PC_GOLUB 2615RL | Intel® Atom® x6425E [w/2500Ws UPS]
Prices on request

Prices excl. VAT plus shipping costs

Available in 21 days, delivery time 1-2 weeks [incl. assembly & function test]

Expansion Cassette
Summary
RAM:
Storage | M.2:
Storage | 2.5 Zoll:
WLAN:
Mobile Network:
Accessories:
Operating System:
RAM:
Mandatory
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 4GB
DDR4-3200, SO-DIMM [0°C ~ 85°C] - 4GB RAM: 4GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 8GB
DDR4-3200, SO-DIMM [0°C ~ 85°C] - 8GB RAM: 8GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 16GB
DDR4-3200, SO-DIMM [0°C ~ 85°C] - 16GB RAM: 16GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 32GB
DDR4-3200, SO-DIMM [0°C ~ 85°C] - 32GB RAM: 32GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4-2666, SO-DIMM [-40°C ~ 85°C] - 4GB
W.T. | DDR4-2666, SO-DIMM [-40°C ~ 85°C] - 4GB RAM: 4GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4-2666, SO-DIMM [-40°C ~ 85°C] - 8GB
W.T. | DDR4-2666, SO-DIMM [-40°C ~ 85°C] - 8GB RAM: 8GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4-2666, SO-DIMM [-40°C ~ 85°C] - 16GB
W.T. | DDR4-2666, SO-DIMM [-40°C ~ 85°C] - 16GB RAM: 16GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4-2666, SO-DIMM [-40°C ~ 85°C] - 32GB
W.T. | DDR4-2666, SO-DIMM [-40°C ~ 85°C] - 32GB RAM: 32GB
Storage | M.2:

Recommended for the installation of the operating system.

Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 128GB
M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 128GB Storage | Size: 128GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 256GB
M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 256GB Storage | Size: 256GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 512GB
M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 512GB Storage | Size: 512GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 1TB
M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 1TB Storage | Size: 1TB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 2TB
M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 2TB Storage | Size: 2TB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 128GB
M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 128GB Storage | Size: 128GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 256GB
M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 256GB Storage | Size: 256GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 512GB
M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 512GB Storage | Size: 512GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 1TB
M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 1TB Storage | Size: 1TB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 2TB
M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 2TB Storage | Size: 2TB
Reset choice
€0.00*
Storage | 2.5 Zoll:
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 240GB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 240GB Storage | Size: 240GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 480GB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 480GB Storage | Size: 480GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 960GB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 960GB Storage | Size: 960GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 1.92TB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 1.92TB Storage | Size: 1,92TB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 3.84TB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 3.84TB Storage | Size: 3,84TB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 7.68TB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 7.68TB Storage | Size: 7,68TB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 128GB
2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 128GB Storage | Size: 128GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 256GB
2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 256GB Storage | Size: 256GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 512GB
2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 512GB Storage | Size: 512GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 1TB
2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 1TB Storage | Size: 1TB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C]
2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 2TB Storage | Size: 2TB
Reset choice
€0.00*
WLAN:
Systemkomponenten & Zubehör_Components_Accessories_WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
Mobile Network:
Systemkomponenten & Zubehör_Components_Accessories_4G_GPS - miniPCIe module [w/antenna]
4G_GPS - miniPCIe module [w/antenna]
Systemkomponenten & Zubehör_Components_Accessories_5G/GPS M.2 3052 module Quectel RM520N-GL [w/2x antenna]
5G/GPS M.2 3052 module Quectel RM520N-GL [w/2x antenna]
Reset choice
€0.00*
Accessories:
Zubehör [kein Direktverkauf]_Components_Accessories_Optionaler Montagesatz - Wall mounting kit [GOLUB 2600, 2610VTC]
Optionaler Montagesatz - Wall mounting kit [GOLUB 2600, 2610VTC] Mounting Kits: Wall mounting kit [GOLUB 2600, 2610VTC]
Zubehör [kein Direktverkauf]_Components_Accessories_Kabel-Set - Cable assembly [1*DB9(F) to 3*DB9(M), 15CM]
Kabel-Set - Cable assembly [1*DB9(F) to 3*DB9(M), 15CM] Cable-Kit: Cable assembly [1*DB9(F) to 3*DB9(M), 15CM]
Operating System:
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 IoT Enterprise LTSC 2021 - #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
Windows® 10 IoT Enterprise LTSC 2021 - #ENTRY 64bit [For Intel Atom, Celeron, Pentium] OS | Variant: #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 Professional - 64bit
Windows® 10 Professional - 64bit OS | Variant: 64bit
_Components_Accessories_Windows® 11 IoT Enterprise 2024 LTSC - #ENTRY
Windows® 11 IoT Enterprise 2024 LTSC - #ENTRY OS | Variant: #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 11 Professional OEM - 64bit
Windows® 11 Professional OEM - 64bit
Reset choice
€0.00*

€2,338.00*

Prices excl. VAT plus shipping costs

Product number: 650133.1
The GOLUB 2615RL series is an EN50155 and EN45545-compliant, fanless Intel® Atom®-based railway computer for video-based rolling stock applications such as NVR (network video recorder) and video analytics.

GOLUB 2615RL has a dedicated thermal design to meet EN50155 OT4 class (-40°C to 70°C) fanless operation with max CPU performance and up to 50W PoE+ delivery. To overcome the challenging railway conditions, from voltage fluctuations to power outage interruptions, GOLUB 2615RL is equipped with an isolated wide 43V to 160V DC input design and a built-in SuperCAP UPS to sustain more than 30 seconds of operation time without power supply. If power outage time exceed the sustainable duration, the internal microcontroller (MCU) will trigger a software shutdown before running out of SuperCAP energy to protect the hardware, data, and minimize maintenance costs.

Powered by Intel® Elkhart Lake Atom® x6425E quad-core CPU, the GOLUB 2615RL series delivers 1.8x the CPU performance compared with Intel‘s previous Atom generation, Apollo Lake. The GOLUB 2615RL series features 4x PoE+ GbE ports with up to 50W total power budget for IP camera connectivity. In addition to the internal M.2 2280 SATA SSD for system storage, GOLUB 2615RL has one front-accessible 2.5“ HDD tray accommodating a 2.5“ SATA HDD/SSD up to 15mm in height and 5TB in capacity. For internal expansion, it provides two mini-PCIe sockets for WiFi, GNSS, and CAN modules. There is also an M.2 3042/3052 B Key socket for 4G/5G mobile broadband modules.

Integrating an Intel Atom® quad-core x6425E, -40°C to 70°C fanless operations, M12 PoE+ connectivity, up to 5TB data storage capacity, 2500 wattsecond SuperCAP UPS, 43V to 160V wide-range DC input, and EN50155 and EN45545 compliance, the GOLUB 2615RL series is the ideal rugged transportation computer for vision-based rolling stock applications.
Key facts• Intel® Atom® x6425E
• Up to 32GB DDR4
• Compliant with EN 50155 and EN 45545-2
• Optional: 2500Ws UPS
• In-Vehicle Computing
Protection class IP20
CPU Intel® Elkhart Lake Atom® x6425E quad-core 2GHz/3GHz, 12W processor
RAM Up to 32GB DDR4-3200 SDRAM by one SODIMM socket
Storage interface 1x M.2 2280 M key (SATA interface only) socket for SATA SSD installation • 1x front-accessible HDD tray for 2.5” HDD/ SSD installation (up to 15mm height)
Ports 4x Gigabit Ethernet ports via M12 x-coded connectors by Intel® I210 • In compliant with IEEE 802.3at PoE+ PSE, maximum 25.5W output on single PoE+ port. Total PoE+ power budget: 50W • 1x USB 3.1 gen1 ports with screw-lock • 2x USB 2.0 port with screw-lock • 1x isolated RS-485 port with 15 kV ESD protection (COM1) • 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 (COM2) • VGA and DVI dual display outputs via DVI-I connector • 1x 3.5 mm jack for mic-in and speaker-out
PCI / PCIe / mini-PCIe 1x full-size mini-PCI Express socket with PCIe and USB 2.0 signal • 1x full-size mini-PCI Express socket with USB 2.0 signal • 1x M.2 3042/3052 B key (USB 3.1 + USB 2.0) for 4G/5G module with dual internal micro SIM socket
DIO 4-CH isolated DI and 4-CH isolated DO
Cooling System Passive, fanless
Mounting Damping bracket • option: Wall-mount
Power input 1x 3-pin pluggable terminal block for isolated 43V to 160V DC input • 2500 watt-second capacity (GOLUB 2615RL only)
Power consumption TBA
Operating system Option: Windows® 10 • LINUX 64Bit
Operating temperature -40°C to 70°C, compliant with EN50155 Class OT4
Storage temperature -40° to 85°C
Storage humidity 10% to 90%; non-condensing
Vibration IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155)
Shock IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155)
Certificate EN 50155:2017, Clause 13.4.8 • CE/FCC Class A, according to EN 55032 & EN 55035 • All mandatory sections of EN 50155:2017 • EN50155 Class S3, EN50155 C2 • EN 45545-2 (Fire protection on railway vehicles)
Weight / kg 2.1kg (GOLUB 2610RL) • 2.7kg (GOLUB 2615RL)

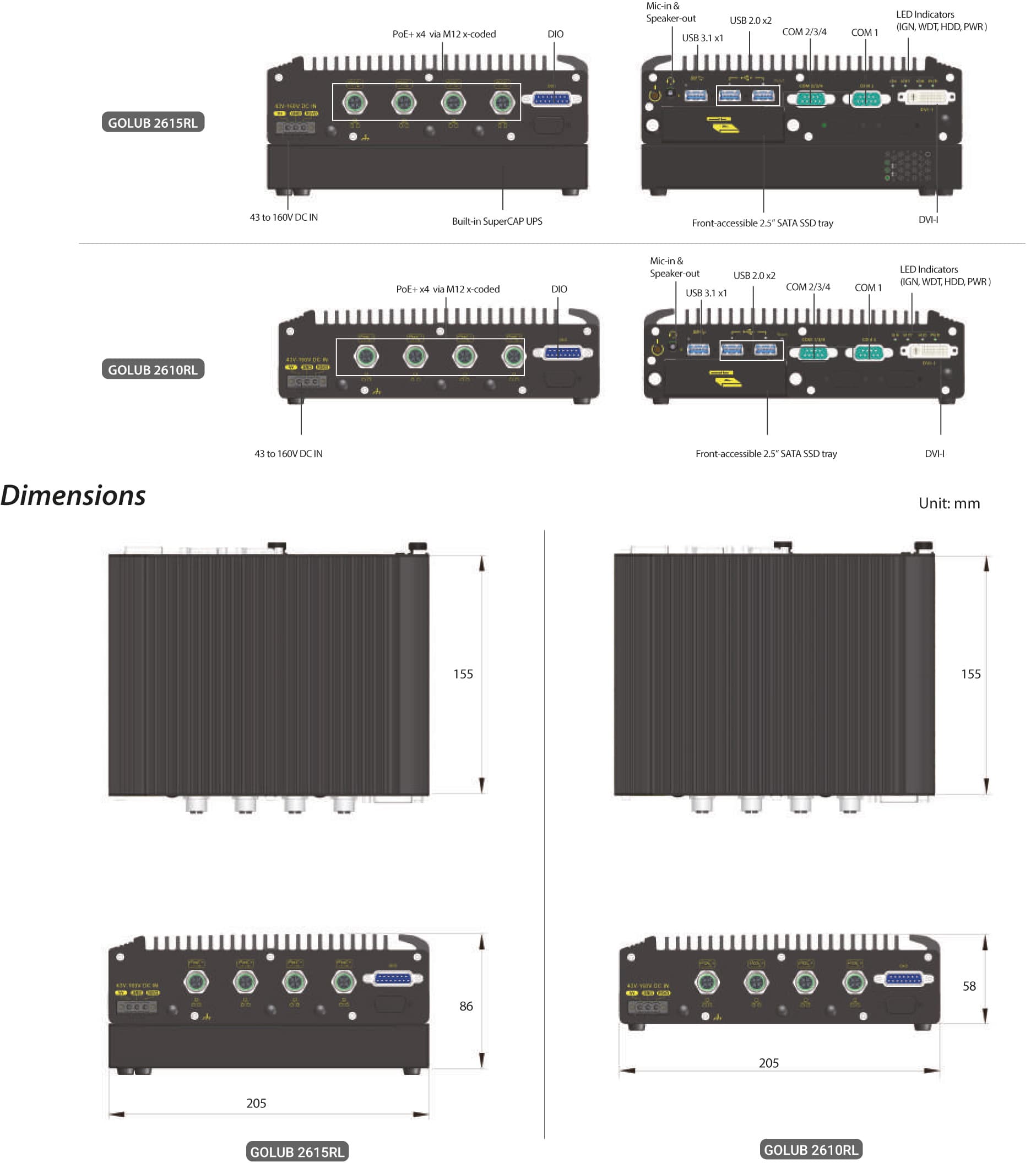

Dimensions / mm 205 x 155 x 58 (GOLUB 2610RL) • 205 x 156 x 86 (GOLUB 2615RL)
Scope of delivery 3-pin terminal connector • Driver CD
