GOLUB 2600E | Intel® Atom® x6425E [1x PCIe]

Compact Embedded PC with PoE+ und PCIe • Intel® Elkhart Lake Atom® x6425E

The GOLUB 2600 series is an Intel® Elkhart Lake Atom® fanless Industrial Box-PC with flexible expansions to fulfill versatile factory automation and machine vision applications that require a compact footprint, Gigabit PoE+ capability, and front-accessible data storage with CPU performance at 12W of low power consumption.

Powered by Intel® Elkhart Lake Atom® x6425E quad-core CPU, the GOLUB 2600 series delivers 320% CPU performance improvement compared with our previous GOLUB 2500E series. The GOLUB 2600 series has four Gigabit PoE+ and one USB 3.1 ports with screw-lock mechanisms to secure camera connections. In addition to its internal M.2 2280 SATA SSD for system storage, GOLUB 2600 has one front-accessible 2.5“ HDD tray accommodating a 7-15mm 2.5“ SSD/HDD up to 5TB in storage capacity. It also has one isolated RS-485 port and isolated DIO to provide robust connections with industrial devices. For internal expansion, the GOLUB 2600 series provides two mini-PCIe sockets and one M.2 3042/3052 B Key socket to support 4G/ 5G mobile broadband.

To meet diverse deployment requirements, the GOLUB 2600 series comes in two variants. The GOLUB 2600E has a PCIe Cassette for an additional PCIe card, e.g., USB or GbE frame grabber, isolated DIO, or industrial communication card. While GOLUB 2600J has an integrated SuperCAP UPS that can withstand power interruption or voltage fluctuation in industrial environments. Featuring Intel Elkhart Lake Atom® quad-core CPU, wide temperature operation, industrial I/O interfaces, and expansion Cassette module, GOLUB 2600 series is the perfect, multi-purpose fanless Industrial PC for factory automation and machine vision applications.

Key facts	• Intel® Elkhart Lake Atom® x6425E • Up to 32GB DDR4 • Fanless • PCIe, Digital I/O • Optional: PoE+, 2500Ws UPS
Protection class	IP20
CPU	Intel® Elkhart Lake Atom® x6425E quad-core 2GHz/3GHz, 12W processor
Chipset	Intel® Q370
RAM	Up to 32GB DDR4-3200 SDRAM by one SODIMM socket
Storage interface	1x M.2 2280 M key (SATA interface only) socket for SATA SSD installation • 1x front-accessible HDD tray for 2.5” HDD/ SSD installation (up to 15mm height)
Ports	4x Gigabit Ethernet ports via RJ-45 connectors with screw-lock. In compliant with IEEE 802.3at PoE+ PSE, maximal 25.5W output on single PoE+ port. Compatible with 802.3at (PoE+) and 802.3af (PoE) PD • 1x USB 3.1 Gen1 (5 Gbps) ports with screw-lock • 2x USB 2.0 port with screw-lock • 1x isolated RS-485 port with 15 kV ESD protection (COM1) • 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 (COM2) • VGA and DVI dual display outputs via DVI-I connector • 1x 3.5 mm jack for mic-in and speaker-out
PCI / PCIe / mini-PCIe	1x PCIe x4 Steckplatz @ 2-Lane PCIe 3.0 Signal in Kassette (nur GOLUB 2600E) • 1x mini-PCI-Express-Buchse in voller Größe mit PCIe- und USB 2.0-Signal • 1x Full-Size mini-PCI-Express-Buchse mit USB 2.0-Signal • 1x M.2 3042/3052 B key (USB 3.1 + USB 2.0) für 4G/5G Modul mit dualem internen micro SIM Sockel
DIO	4-CH isolated DI and 4-CH isolated DO
Cooling System	Passive, fanless

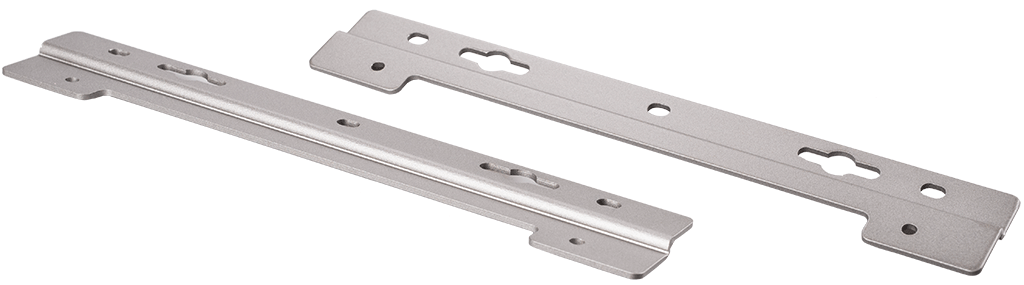

Mounting	Option: Wall-mount bracket
Power input	1x 3-pin pluggable terminal block for 8V to 35V DC input with optional ignition power control • 1x 3-pin pluggable terminal block for remote control and PWR LED output
Power consumption	TBA
Operating system	Option: Windows® 10 • LINUX 64Bit
Operating temperature	-25°C to 70°C
Storage temperature	-40°to 85°C
Storage humidity	10% to 90%; non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.7, Category 4
Shock	Operating, MIL-STD-810G, Method 516.7, Procedure I
Certificate	CE/FCC Class A, according to EN 55032 & EN 55035
Weight / kg	2.3 kg (GOLUB 2600E) • 2.5 kg (GOLUB 2600J)
Dimensions / mm	205 x 154.7 x 85.6
Scope of delivery	3-pin terminal connector • Driver CD
