FALCON CF 16-CN [Optical Bonding]
15.6" (Widescreen) IP65 panel mount Touch-Monitor with capacitive Touch (PCT)
![Touch-Monitore: Panel Mount_Touch-Monitor_FALCON CF 16-CN [Optical Bonding]](https://aprotech.de/thumbnail/2c/68/14/1738931671/20303_Touch-Monitor_FALCON_CF_16-CN_1920x1920.webp?ts=1738931671 "Touch-Monitore: Panel Mount_FALCON CF 16-CN [Optical Bonding]")
![Touch-Monitore: Panel Mount_Touch-Monitor_FALCON CF 16-CN [Optical Bonding]](https://aprotech.de/thumbnail/78/17/84/1738931671/20302_Touch-Monitor_FALCON_CF_16-CN_Front_1920x1920.webp?ts=1738931672 "Touch-Monitore: Panel Mount_FALCON CF 16-CN [Optical Bonding]")
![Touch-Monitore: Panel Mount_Touch-Monitor_FALCON CF 16-CN [Optical Bonding]](https://aprotech.de/thumbnail/48/ec/67/1738931672/20304_Touch-Monitor_FALCON_CF_16_CN_Back_1920x1920.webp?ts=1738931672 "Touch-Monitore: Panel Mount_FALCON CF 16-CN [Optical Bonding]")
![Touch-Monitore: Panel Mount_Touch-Monitor_FALCON CF 16-CN [Optical Bonding]](https://aprotech.de/thumbnail/d6/bd/f7/1738931672/20301_Touch-Monitor_FALCON_CF_16-CN_Drawing_1920x1920.webp?ts=1738931673 "Touch-Monitore: Panel Mount_FALCON CF 16-CN [Optical Bonding]")
Prices on request
Available, delivery time: 1-2 weeks [incl. assembly & function test]
Summary
Power Supply:
![Systemkomponenten & Zubehör_Components_Accessories_Desktop power supply [Terminal Block] - 60W [24V/2.5A]](https://aprotech.de/thumbnail/14/1d/3a/1731295176/Desktop-power-supply-Terminal-Block-60W-24V-2-5A-740000_1920x1920.webp?ts=1731295179 "Systemkomponenten & Zubehör_Desktop power supply [Terminal Block] - 60W [24V/2.5A]")
Reset choice
€0.00*
Product number:
540100
| Key facts | • 15.6" ~ 21.5"
• Aluminium silver
• IP65, front
• Capacitive
• Optical Bonding
• Fanless |
|---|---|
| Display Size | 15.6” • 17” • 21.5” |
| Aspect ratio / resolution | 16:9 / 1920 x 1080 (15.6"; 21.5") • 5:4/ 1280 x 1024 (17") |
| Touch | IP65, front |
| Protection class | Capacitive (PCT) |
| Front | Aluminium silver |

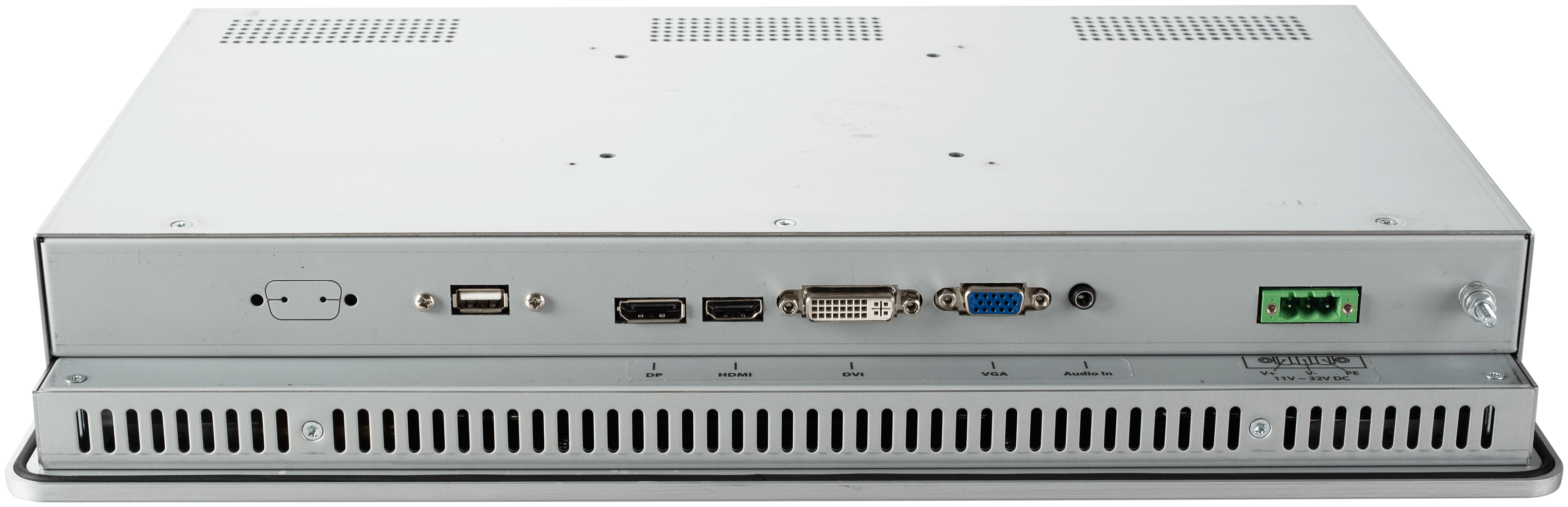

| Ports | 1x VGA • 1x DVI • 1x HDMI • 1x Displayport |
| Cooling System | Passive, fanless |
| Mounting | Panel mounting • VESA 100 x 100 (15.6"; 17") • VESA 200 x 200 (21.5") |
| Power input | 11V to 32V DC |
| Power consumption | 25W (15.6"; 17") • TBA (21.5") |
| Max. color | 16.7M |
| Luminance /cd/m2 | 400 (15.6") • 350 (17") • 300 (21.5") |
| View angle / H/V | 160° / 160° (15.6) • 170° / 160° (17") • 170° / 170° (21.5") |
| Backlight lifetime / hrs | 50,000 (15.6"; 17") • 30,000 (21.5") |
| Contrast ratio | 500:1 (15.6") • 800:1 (17") • 5000:1 (21.5") |
| Operating temperature | 0° to 60°C |
| Certificate | CE |
| Weight / kg | 5.5 (15.6") • 7.4 (17") • TBA (21.5") |

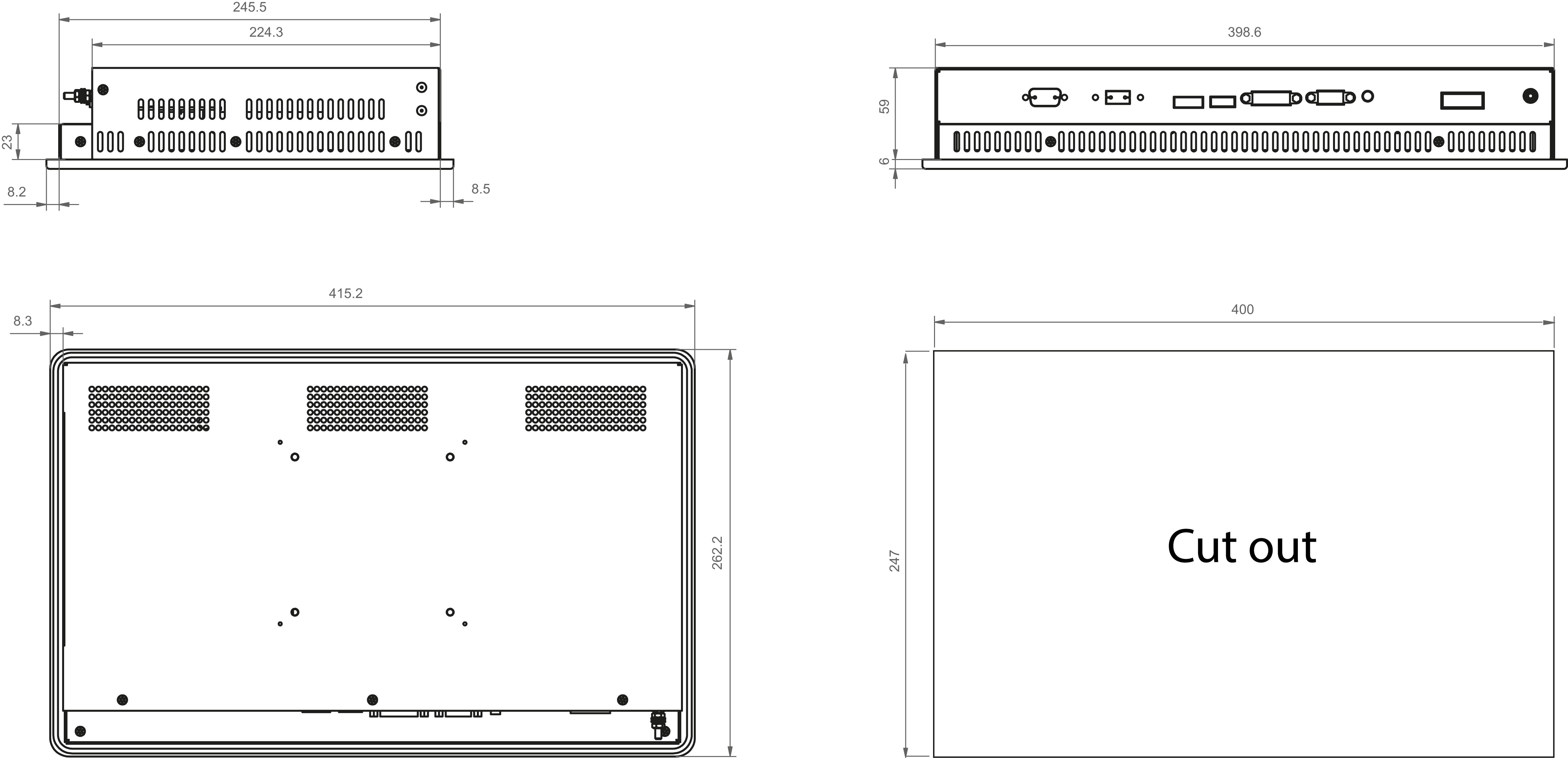

| Dimensions / mm | 415.2 x 262.2 x 65 (15.6") • 423.5 x 358.8 x 64.8 (17") • 594.5 x 372 x 65.5 (21.5") |
| Scope of delivery | Cable (DVI, Touch) • 3-pin terminal block connector • retaining clip • touch pen |
