EAGLE AP 16-BTN | Intel® Core™ i3-1115G4E [PCT]

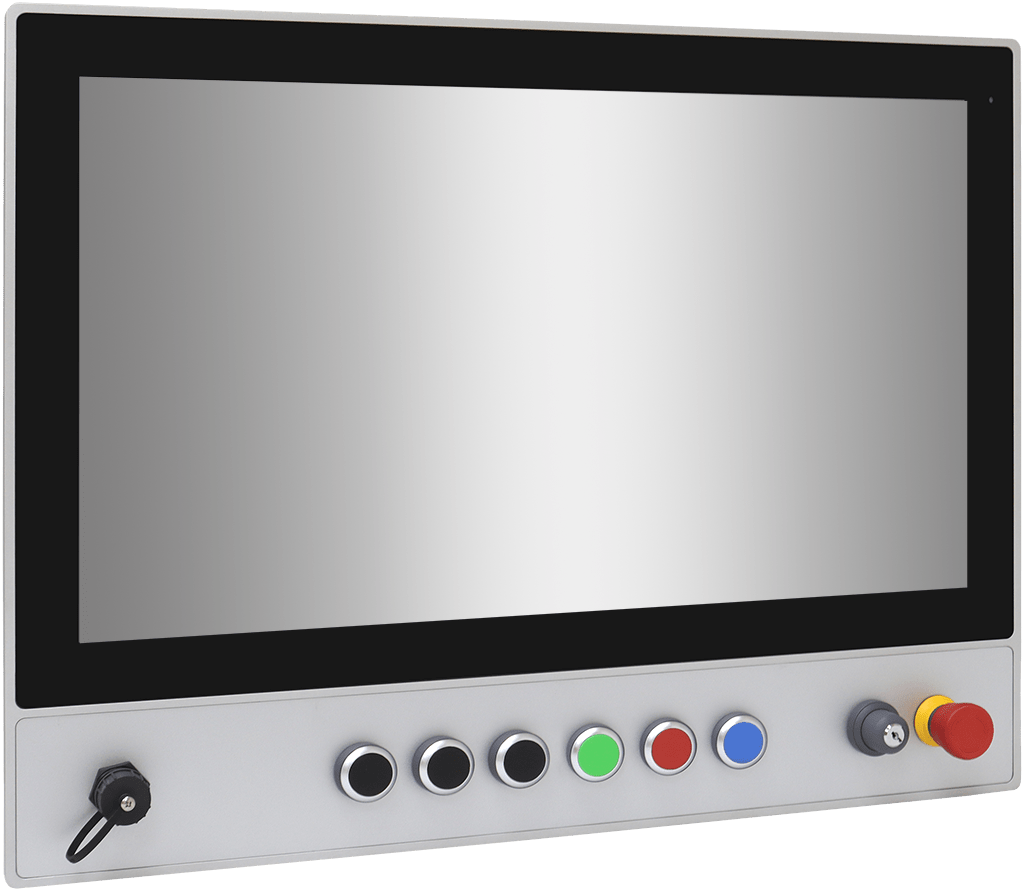

15.6" (Widescreen) Panel-PC IP65 full sealed with integrated Buttons

Skip image gallery
_Panel-PC_EAGLE AP 16-BTN | Intel® Core™ i3-1115G4E [PCT]
_Panel-PC_EAGLE AP 16-BTN | Intel® Core™ i3-1115G4E [PCT]
_Panel-PC_EAGLE AP 16-BTN | Intel® Core™ i3-1115G4E [PCT]
_Panel-PC_EAGLE AP 16-BTN | Intel® Core™ i3-1115G4E [PCT]
_Panel-PC_EAGLE AP 16-BTN | Intel® Core™ i3-1115G4E [PCT]
_Panel-PC_EAGLE AP 16-BTN | Intel® Core™ i3-1115G4E [PCT]
_Panel-PC_EAGLE AP 16-BTN | Intel® Core™ i3-1115G4E [PCT]
_Panel-PC_EAGLE AP 16-BTN | Intel® Core™ i3-1115G4E [PCT]
_Panel-PC_EAGLE AP 16-BTN | Intel® Core™ i3-1115G4E [PCT]
_Panel-PC_EAGLE AP 16-BTN | Intel® Core™ i3-1115G4E [PCT]
_Panel-PC_EAGLE AP 16-BTN | Intel® Core™ i3-1115G4E [PCT]
_Panel-PC_EAGLE AP 16-BTN | Intel® Core™ i3-1115G4E [PCT]
_Panel-PC_EAGLE AP 16-BTN | Intel® Core™ i3-1115G4E [PCT]
_Panel-PC_EAGLE AP 16-BTN | Intel® Core™ i3-1115G4E [PCT]
Prices on request

Prices excl. VAT plus shipping costs

Available in 28 days, delivery time 1-2 weeks [incl. assembly & function test]

Screen | Size
CPU
Summary
RAM:
Storage:
WLAN:
Mobile Network:
Operating System:
RAM:

2 slots available - max. 64 GB DDR4 SODIMM (max. 32GB per slot)

Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4, SO-DIMM - 4GB
DDR4, SO-DIMM - 4GB RAM: 4GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4, SO-DIMM - 8GB
DDR4, SO-DIMM - 8GB RAM: 8GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4, SO-DIMM - 16GB
DDR4, SO-DIMM - 16GB RAM: 16GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4, SO-DIMM - 32GB
DDR4, SO-DIMM - 32GB RAM: 32GB
Storage:
Mandatory
Systemkomponenten [kein Direktverkauf] _Components_Accessories_M.2 2280 (NVMe PCIe) W.T. SSD, TLC [-20°C ~ 75°C] - 128GB
M.2 2280 (NVMe PCIe) W.T. SSD, TLC [-20°C ~ 75°C] - 128GB Storage | Size: 128GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_M.2 2280 (NVMe PCIe) W.T. SSD, TLC [-20°C ~ 75°C] - 256GB
M.2 2280 (NVMe PCIe) W.T. SSD, TLC [-20°C ~ 75°C] - 256GB Storage | Size: 256GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_M.2 2280 (NVMe PCIe) W.T. SSD, TLC [-20°C ~ 75°C] - 512GB
M.2 2280 (NVMe PCIe) W.T. SSD, TLC [-20°C ~ 75°C] - 512GB Storage | Size: 512GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_M.2 2280 (NVMe PCIe) W.T. SSD, TLC [-20°C ~ 75°C] - 1TB
M.2 2280 (NVMe PCIe) W.T. SSD, TLC [-20°C ~ 75°C] - 1TB Storage | Size: 1TB
WLAN:
Systemkomponenten & Zubehör_Components_Accessories_WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
Mobile Network:
Systemkomponenten & Zubehör_Components_Accessories_4G_GPS - miniPCIe module [w/antenna]
4G_GPS - miniPCIe module [w/antenna]
Systemkomponenten & Zubehör_Components_Accessories_5G/GPS M.2 3052 module Quectel RM520N-GL [w/2x antenna]
5G/GPS M.2 3052 module Quectel RM520N-GL [w/2x antenna]
Reset choice
€0.00*
Operating System:
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 Professional - 64bit
Windows® 10 Professional - 64bit OS | Variant: 64bit
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 IoT Enterprise LTSC 2021 - #VALUE 64bit [For Intel Core i5, Core i3]
Windows® 10 IoT Enterprise LTSC 2021 - #VALUE 64bit [For Intel Core i5, Core i3] OS | Variant: #VALUE 64bit [For Intel Core i5, Core i3]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 11 Professional OEM - 64bit
Windows® 11 Professional OEM - 64bit
_Components_Accessories_Windows® 11 IoT Enterprise 2024 LTSC - #VALUE
Windows® 11 IoT Enterprise 2024 LTSC - #VALUE OS | Variant: #VALUE 64bit [For Intel Core i5, Core i3]
Reset choice
€0.00*

€2,884.00*

Prices excl. VAT plus shipping costs

Product number: 620040.4
Key facts• 15.6" and 21.5"
• 11th Gen. Intel Core i3/i5
• Max. 64GB DDR4
• IP65 Full Sealed

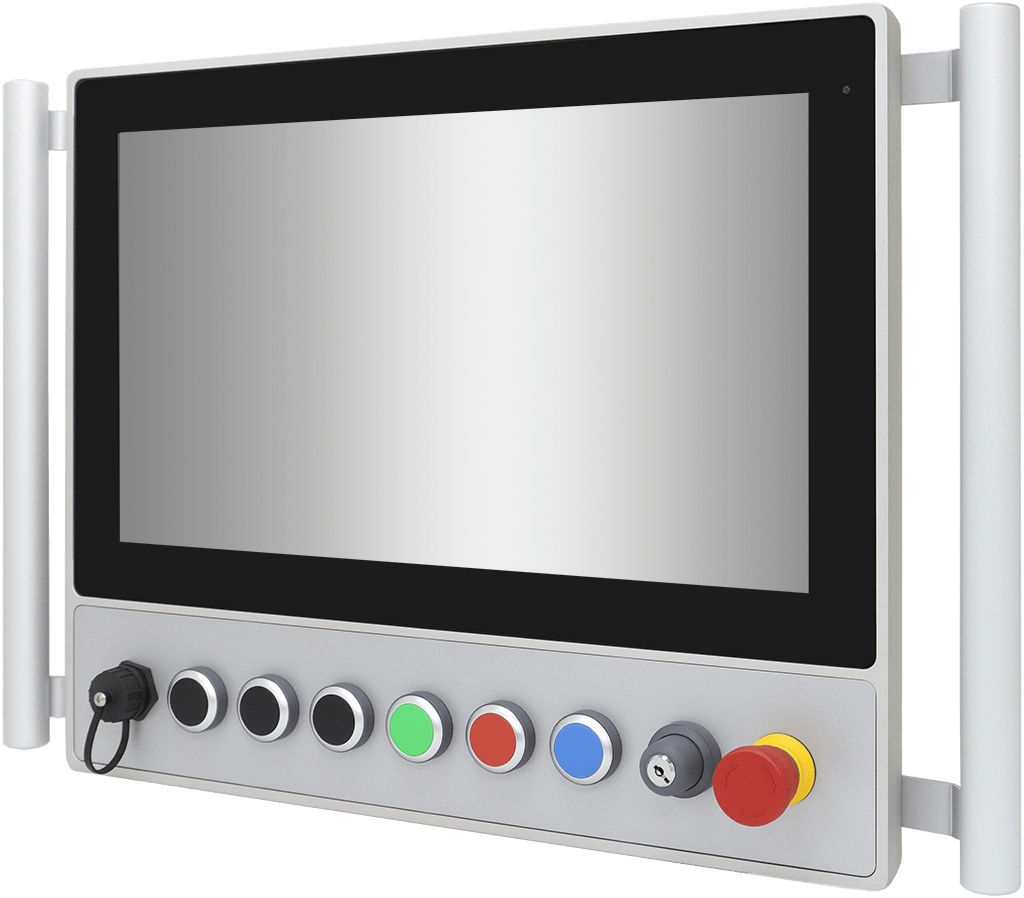

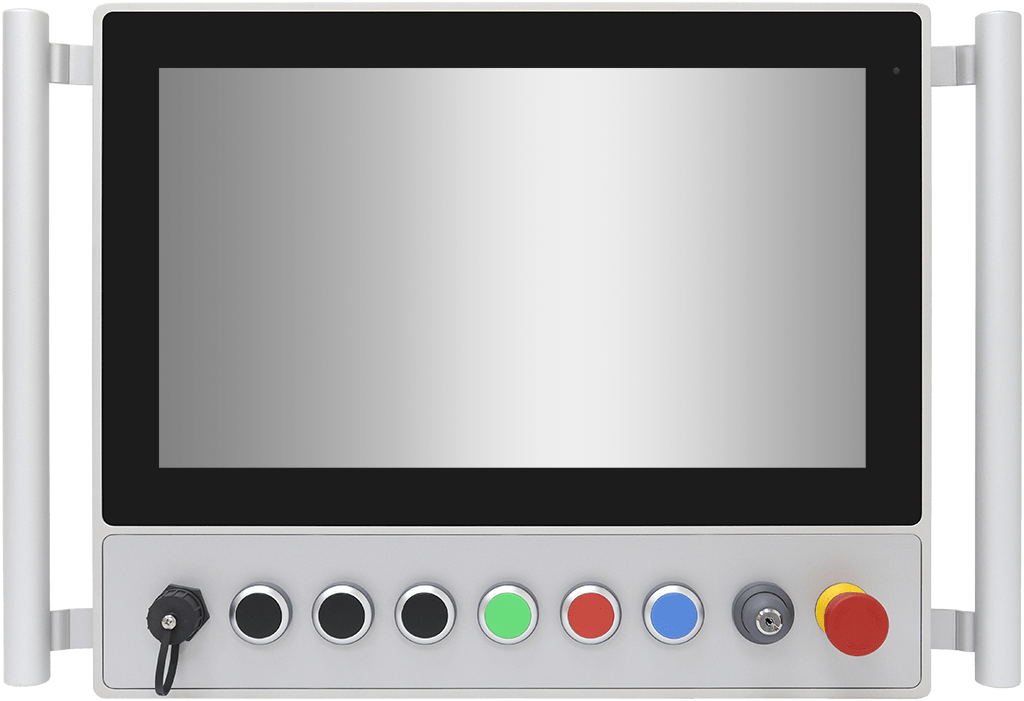

• Swing Arm ready
• Capacitive
• Fanless
Display Size 15.6“ • 21.5”
Aspect ratio / resolution 16:9 / 1920 x 1080
Touch Capacitive (PCT)
Protection class Full IP65
Front Front Bezel: Aluminum CNC • Rear Housing: Stainless 316L
CPU Intel® 11th Gen. (Tiger Lake-UP3) i3-1115G4E (2C, 2.2GHz) • Intel® 11th Gen. (Tiger Lake-UP3) i5-1145G7E (4C, 1.5GHz)
Chipset Intel® Baytrail SoC - Embedded Long Life Chipset
RAM 2x DDR4-3200MHz SO-DIMM slot, up to 64GB
Storage interface 1x M.2 2280 M-key (PCIe x4) slot for PCIe/NVMe SSD
Ports 1x Intel i219LM, RJ45 GbE LAN • 1x Intel i225LM, RJ45 2.5GbE LAN • 4x USB 3.2 Gen 2 Type-A • 1x USB 3.2 Gen 2 Type-C • 1x COM1 (RS-232/422/485) (default); option: 1x COM2 (RS-232/422/485, supports 5V/12V/RI) • 2x DP 1.4a • 1x HDMI 2.0b • 1x Power Button with Light

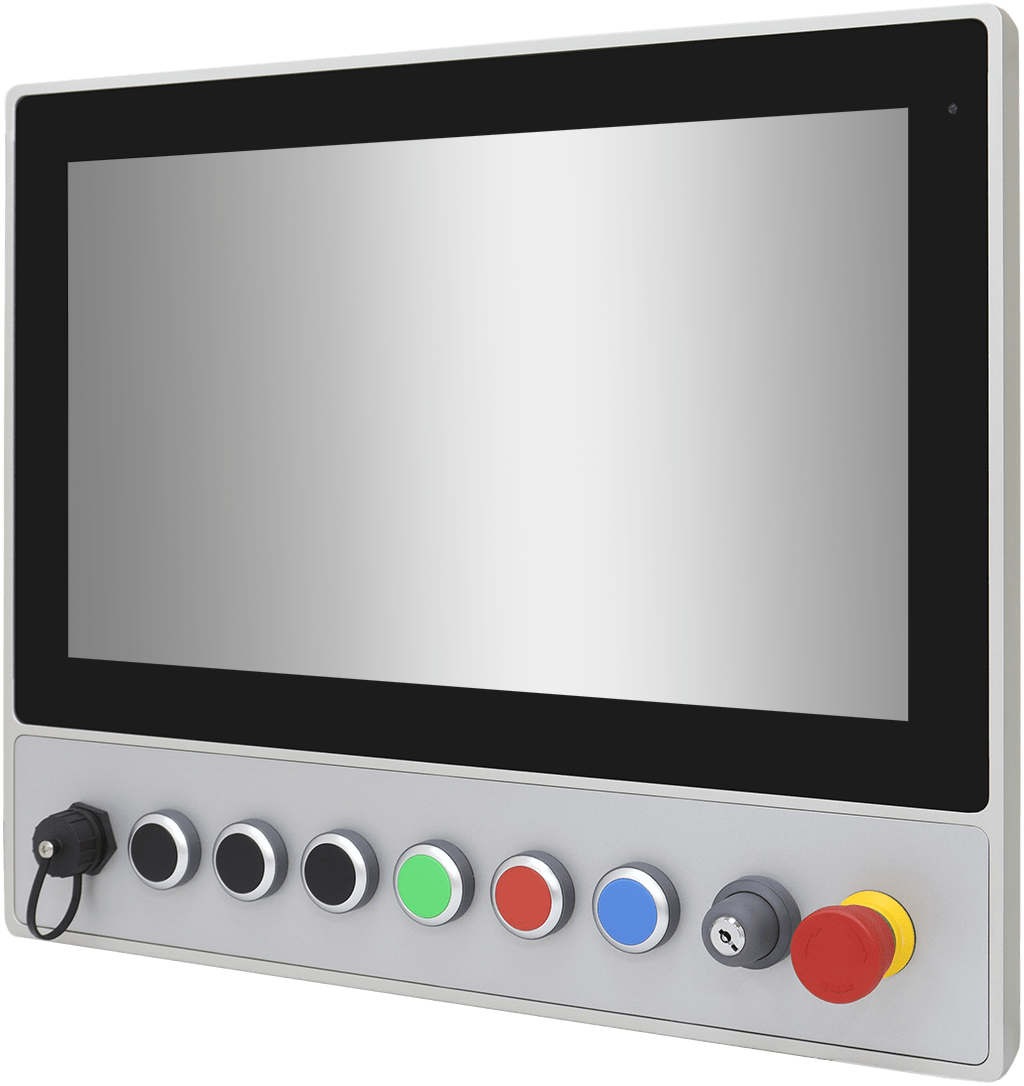

PCI / PCIe / mini-PCIe 1x Emergency Button (default); Default: 1x BLUE (reset) / 1x RED (stop) / 1x GREEN (start); Option: 3x BLACK (self-defined) / 1x Key Switch • 1x USB 2.0 Type-A
Cooling System Passive, fanless

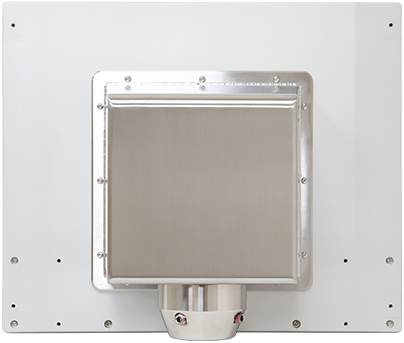

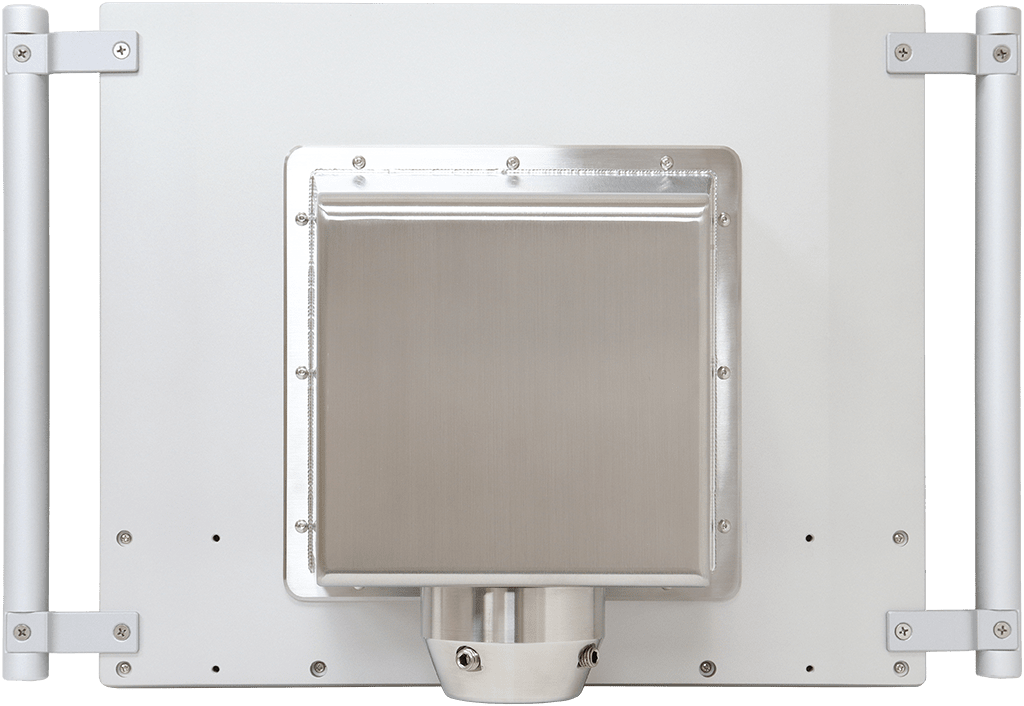

Mounting Swing Arm support Rittal CP-40
Power input 9V to 36V DC • 1x 3-pin Phoenix Connector for DC power
Power consumption 36W (15.6“) • 44W (21.5“)
Operating system Option: Windows 10 IoT • Windows 11 IoT • Ubuntu
Max. color 16.7M
Luminance /cd/m2 500 (15.6“) • 250 (21.5“) • option: 1000
View angle / H/V 178°/178°; opiton: 165°/165° (15.6“) • 178°/178°; opiton: 174°/174° (21.5“)
Backlight lifetime / hrs 50,000
Contrast ratio 1000:1
Operating temperature 0° to 50°C
Storage temperature -30° to 70°C
Storage humidity 10% to 90% @ 40°C, non-condensing
Certificate Meet CE/FCC Class A / UKCA
Weight / kg 10.23 (15.6“) • 17.5 (21.5“)

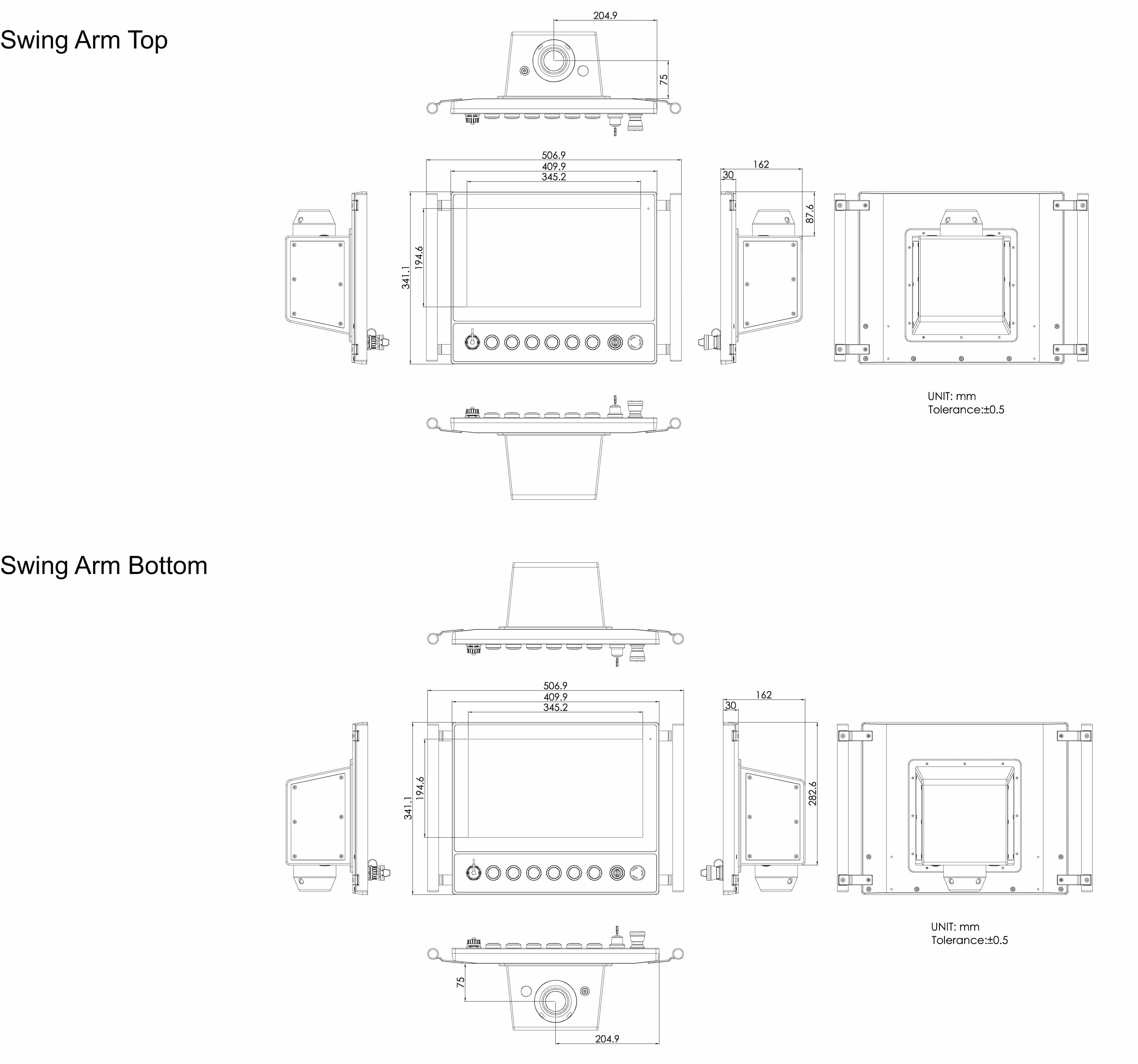

Dimensions / mm 409.9 x 341.1 x 162 (15.6“) • 545.80 x 418 x 162 (21.5“)
Scope of delivery Power supply, 60W • IP65 cable set (LAN; COM cable) • driver CD
