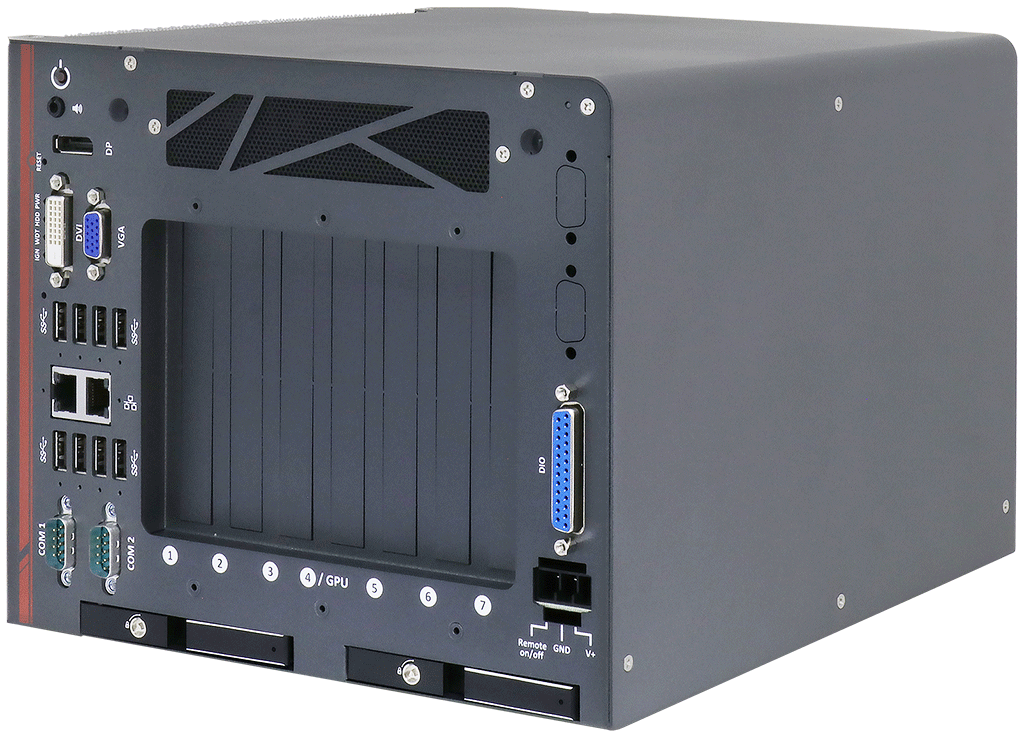

CamCollect® 8034

Epansion Box-PC supports NVIDIA® GPU • 9th Gen. Intel® Core™ i7/i5/i3

CamCollect® 8034 is a new-breed of box-PC offering 7 expansion slots in a comparatively compact size. Of its four PCIe slots, two are x16 slots (@Gen3, 8-lanes) connected directly to the CPU PEG port to deliver up to 8 GB/s bandwidth for GPU and high speed I/O cards, and two are x8 slots (@Gen3, 4-lanes) from PCH for general-purpose usage. The system is capable of accmmodating one 180W NVIDIA® GPU for modern AI applications. Additionally, there are 3 PCI slots to support legacy PCI cards for general industrial usage.

CamCollect® 8034 supports Intel® 9th/ 8th-Gen Core™ i processor with workstation-grade Intel® C246 chipset to offer superior computing power. By using the unmistakable performance design, the Industrial Box-PC CamCollect® 8034 can handle heavy power consumption of multiple PCIe and PCI expansion cards with 8V to 35V widerange DC input. The system features two hot-swappable trays that support 2.5“ SATA SSD/ HDD on the front panel with RAID 0/ 1 support, making it easier to access when placed inside a cabinet. External I/O wise, CamCollect® 8034 offers 8-channel isolated DI and 8-channel isolated DO for industrial automation, eight USB 3.1 Gen1/ Gen2 ports with screw-lock for USB3 cameras.

With an assortment of I/O ports and flexible 7-slot PCIe/ PCI expandability, CamCollect® 8034 is an all-around rugged solution that can satisfy various industrial applications such as machine vision, industrial automation and data analytics.

Key facts	• 9th Gen. Intel® Core™ i7/i5/i3 • Up to 128GB DDR4 • 4x PCIe/3x PCI • Option: PoE+, 10GigE • Supports NVIDIA® 180W GPUs
Protection class	IP20
CPU	Supporting Intel® Xeon® E and 9th/ 8th Gen CPU (LGA1151 socket)
Chipset	Intel® C246 Platform Controller Hub
RAM	Up to 128GB ECC/ non-ECC DDR4 2133 SDRAM (four SODIMM slots)
Storage interface	2x hot-swappable trays for 2.5” HDD/ SSD installation, supporting RAID 0/ 1 • 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory • 2x full-size mSATA port (mux with mini-PCIe)
RAID	0/1

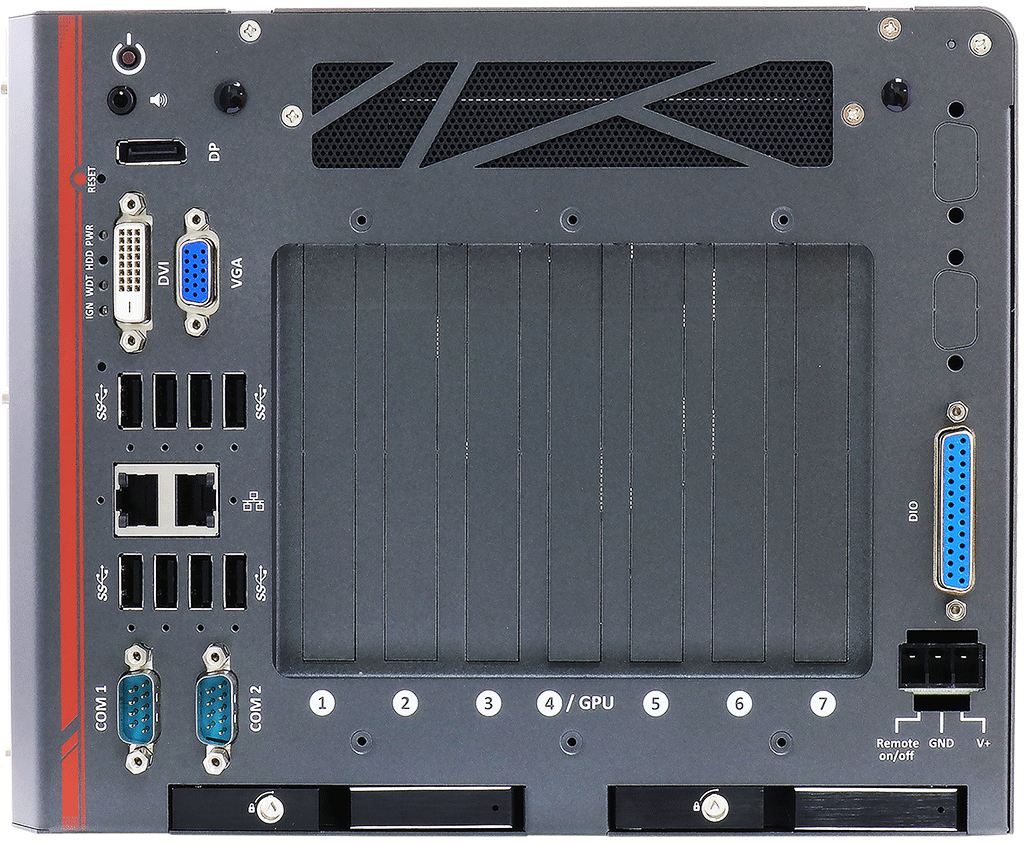

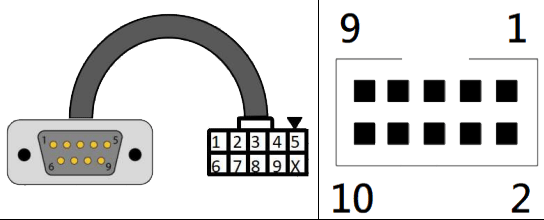

Ports	2x GigE, 1x Intel® I219-LM, 1x Intel® I210-IT; with screw-lock • 4x USB 3.1 Gen2 (10 Gbps); with screw-lock • 4x USB 3.1 Gen1 (5 Gbps); with screw-lock • 1x USB 2.0, internal use • 2x software-programmable RS-232/422/485 ports (COM1/ COM2); Option: 2x RS-232 ports (COM3/ COM4) • 1x VGA, supporting 1920 x 1200 resolution • 1x DVI-D, supporting 1920 x 1200 resolution • 1x DisplayPort, supporting 4096 x 2304 resolution • 1x 3.5 mm jack for mic-in and speaker-out
PCI / PCIe / mini-PCIe	2x PCIe x16 slot@Gen3, 8-lanes • 2x PCIe x8 slots@Gen3, 4-lanes • 3x PCI (33MHz/32-bit 5V • 1x M.2 2242 B key socket supporting dual SIM mode with selected M.2 LTE module • 2x mini-PCIe, full-size, with internal SIM socket (mux with mSATA)
DIO	8x isolated DI and 8x isolated DO

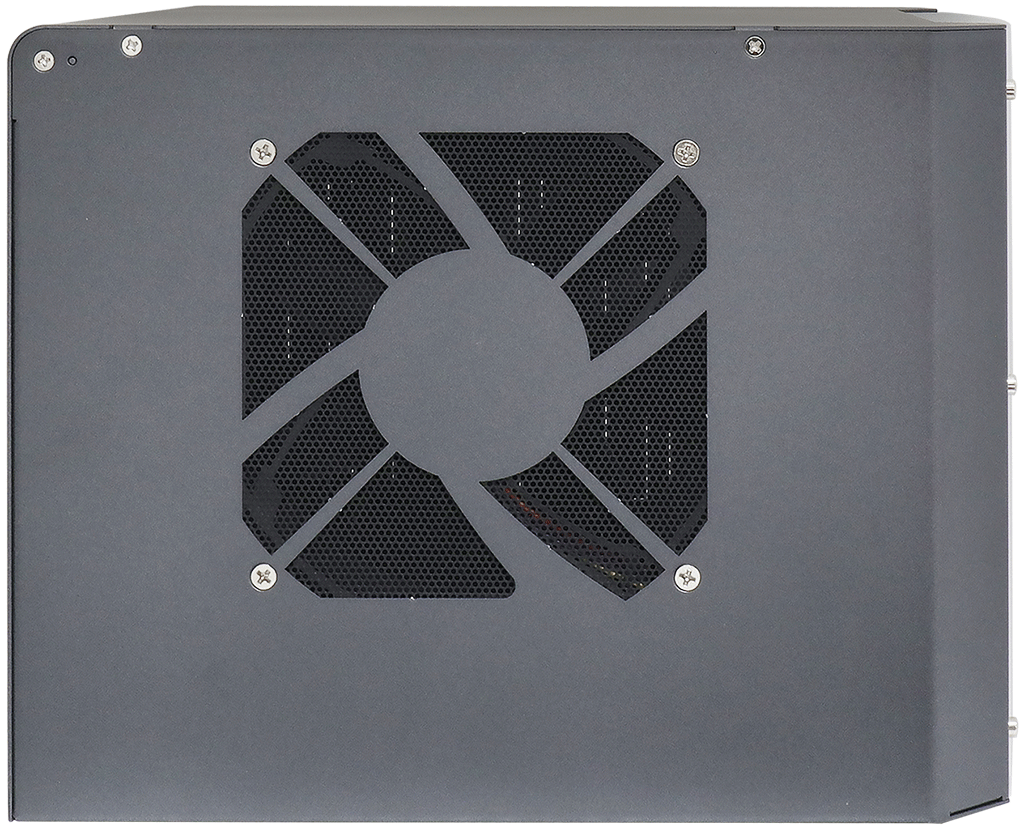

Cooling System	Active, fan
Mounting	Wall-mount
Power input	1x 3-pin pluggable terminal block for 8V to 35V DC input; 1x 3-pin pluggable terminal block for remote control
Power consumption	TBA
Operating system	Option: Microsoft Windows® 10 • Fedora 29 • Ubuntu 16.04.5 LTS & Ubuntu18.04.0 LTS
Operating temperature	-25°C to 60°C with 100% CPU/ GPU loading
Storage temperature	-40°C to 85°C
Storage humidity	10% to 90% @ 40°C; non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Certificate	CE/FCC Class A, according to EN 55032 & EN 55024
Weight / kg	7

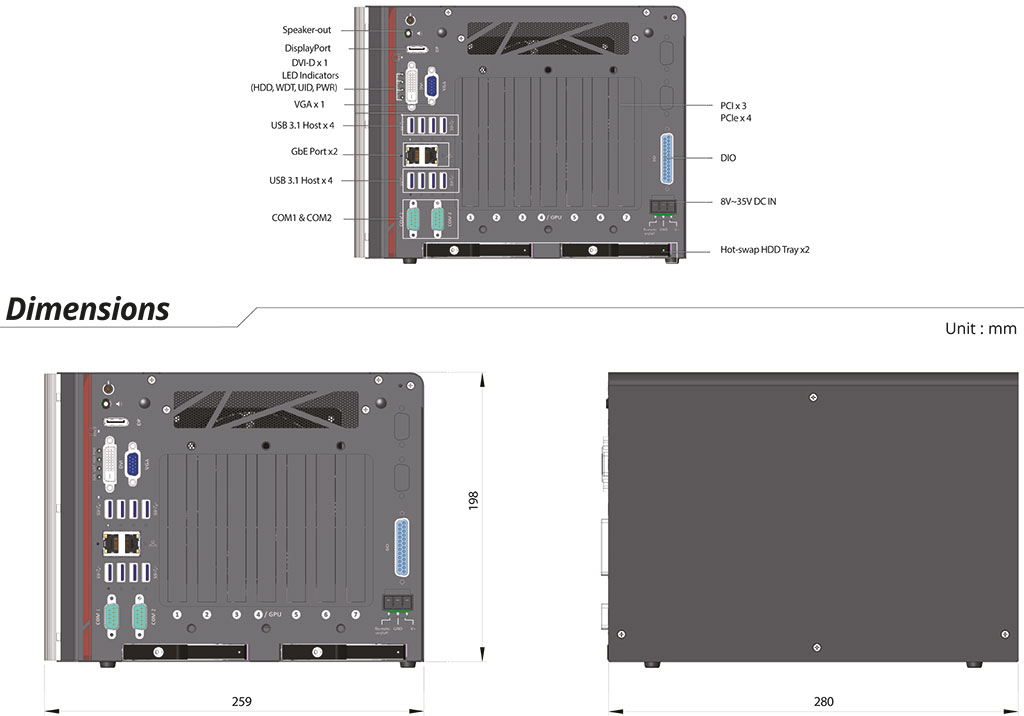

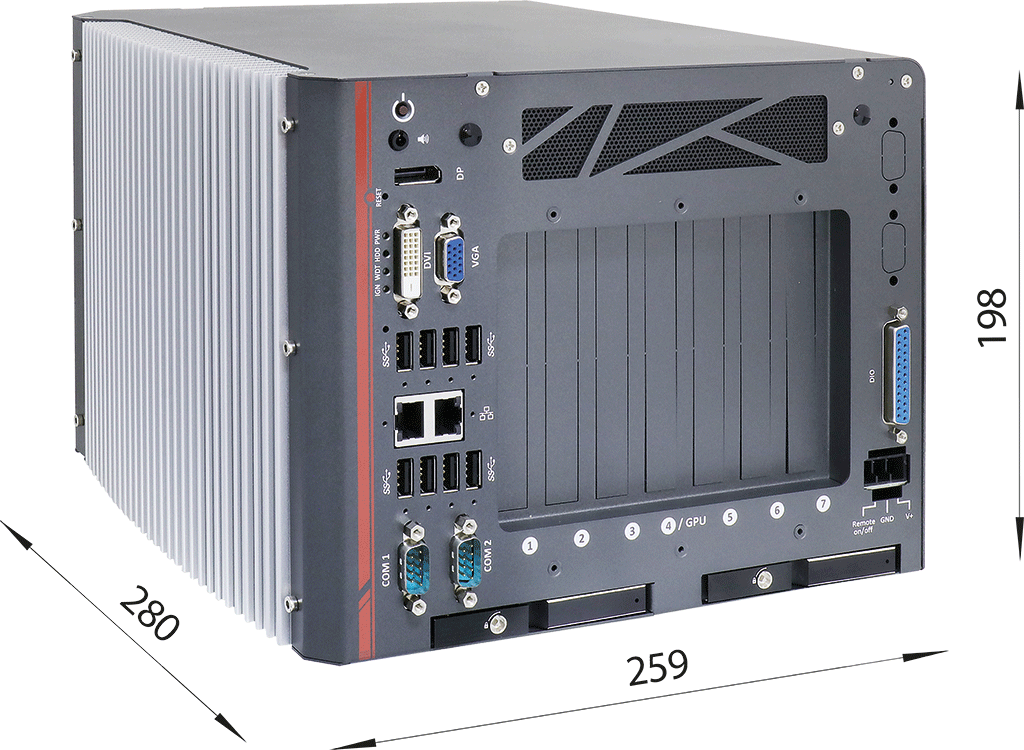

Dimensions / mm	259 x 280 x 198
Scope of delivery	3-pin Terminal connector • Wall mounting kit • Driver CD
