CamCollect® 766

Cost-effective IP67 Extreme Rugged PC • Intel® Core™ i3-N305

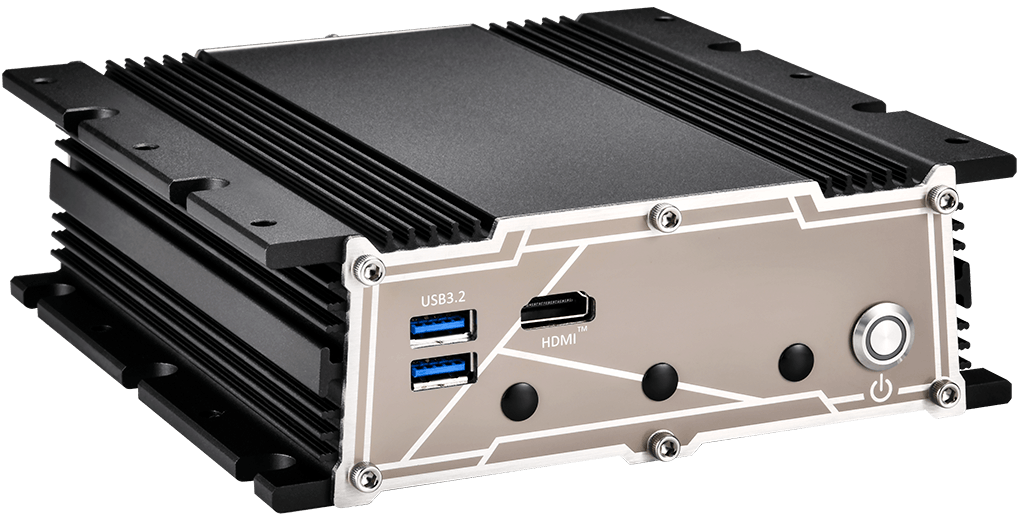

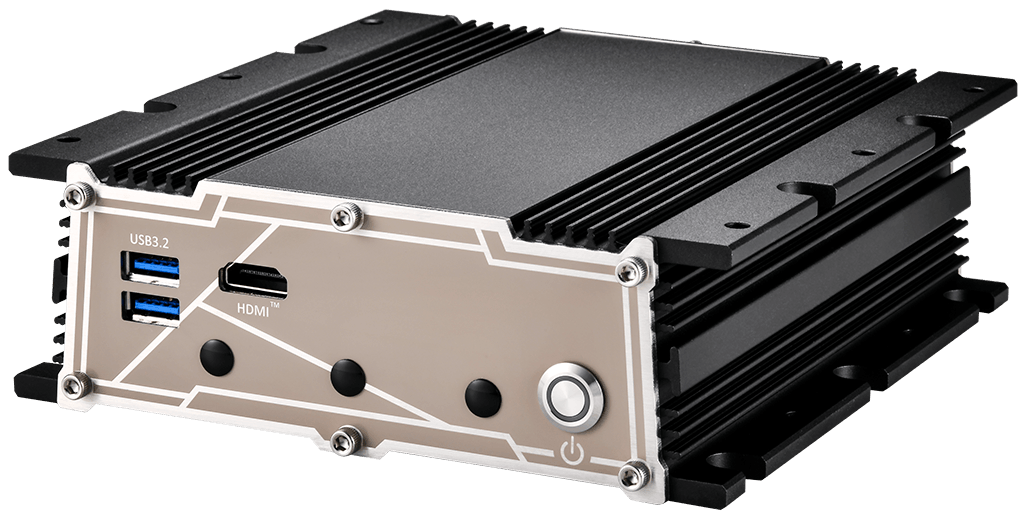

CamCollect® 766 is the new-generation AWP-series waterproof fanless embedded computer, featuring upgraded performance and enhanced rugged design. Powered by the Intel® i3-N305 processor and supporting DDR5 memory, it delivers a major boost in performance within a fully sealed IP67-rated enclosure. Built with stainless steel and aluminum, it provides two thermal solutions: direct-contact cooling inside metal cabinets and fanless cooling for standalone installation. CamCollect® 766 ensures reliable operation for demanding industrial and outdoor applications.

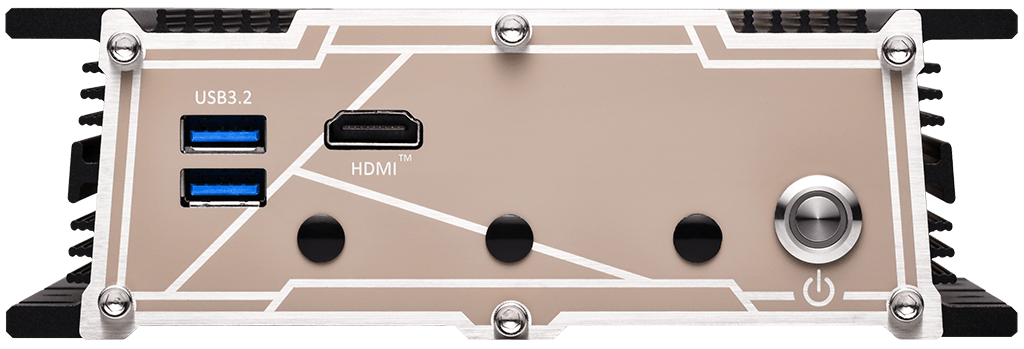

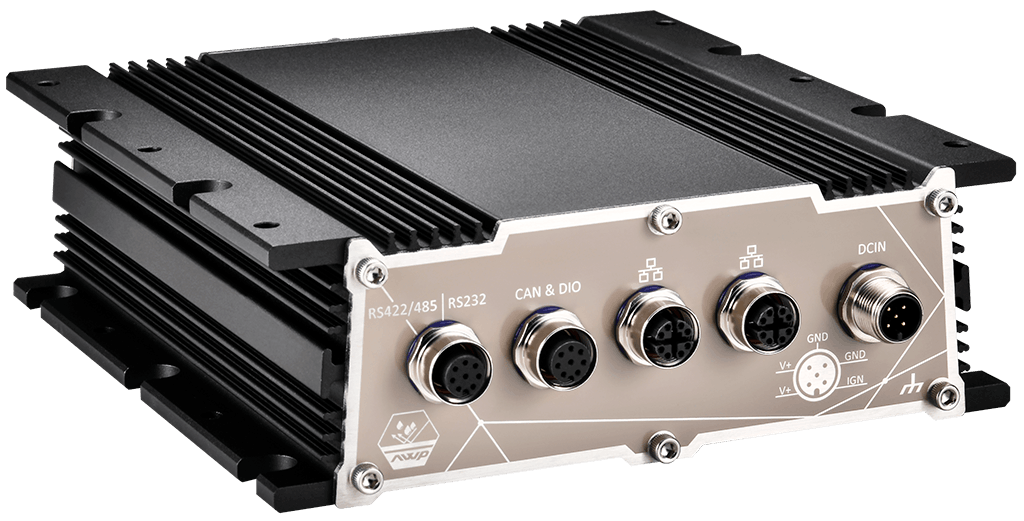

Engineered for industrial reliability, CamCollect® 766 features rugged I/O connectivity designed for demanding field environments. It provides dual 2.5GbE M12 X-coded connectors for secure, vibration-resistant Ethernet connections, as well as one isolated RS-232 and one isolated RS-422/485 port to ensure stable data transmission and protection against electrical surges. The system also supports CAN bus and isolated Digital IO, along with a Mini-PCIe slot for wireless WiFi or LTE modules. Additionally, two internal USB 3.2 ports and one HDMI interface are available for use in non-waterproof environments, offering convenient access for system configuration or peripheral expansion.

CamCollect® 766 delivers IP67-level protection with an optimized balance between performance and cost. Its compact design and M12 connectivity guarantee protection against moisture, vibration, and dust, ensuring continuous operation in harsh environments. Designed for real-world durability and minimal maintenance, CamCollect® 766 is ideal for applications such as agriculture, outdoor equipment, and industrial vehicles.

Key facts	• IP67-rated waterproof and dustproof design • Intel® Alder Lake Core™ i3-N305 • max. 16GB DDR5 • Fanless • Supports dTPM 2.0
Protection class	IP67
CPU	Intel® Alder Lake Core™ i3-N305 processor (8C/8T, 1.8/3.8 GHz, 15W TDP)
RAM	1x DDR5-4800 SDRAM up to 16GB (one SODIMM socket)
Storage interface	1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD (supports SATA signal)

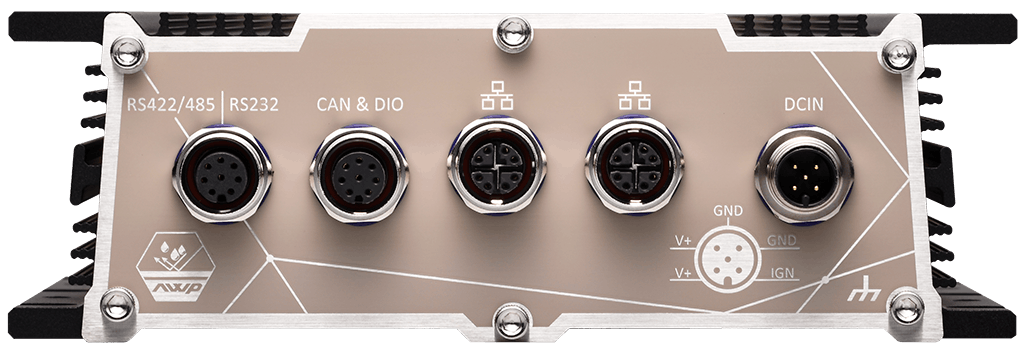

Ports	2x 2.5Gb Ethernet ports by Intel® I226-IT via M12 X-coded, 8-pin connector • 2x USB 3.2 Gen2 x1 ports in type-A connectors • 1x isolated RS-232 port (COM1) and1x isolated RS-422/485 ports (COM2) via M12 A-coded, 8-pin • 1x HDMI1.4b, Supporting 3840 x 2160 30Hz • 1x isolated CAN2.0B

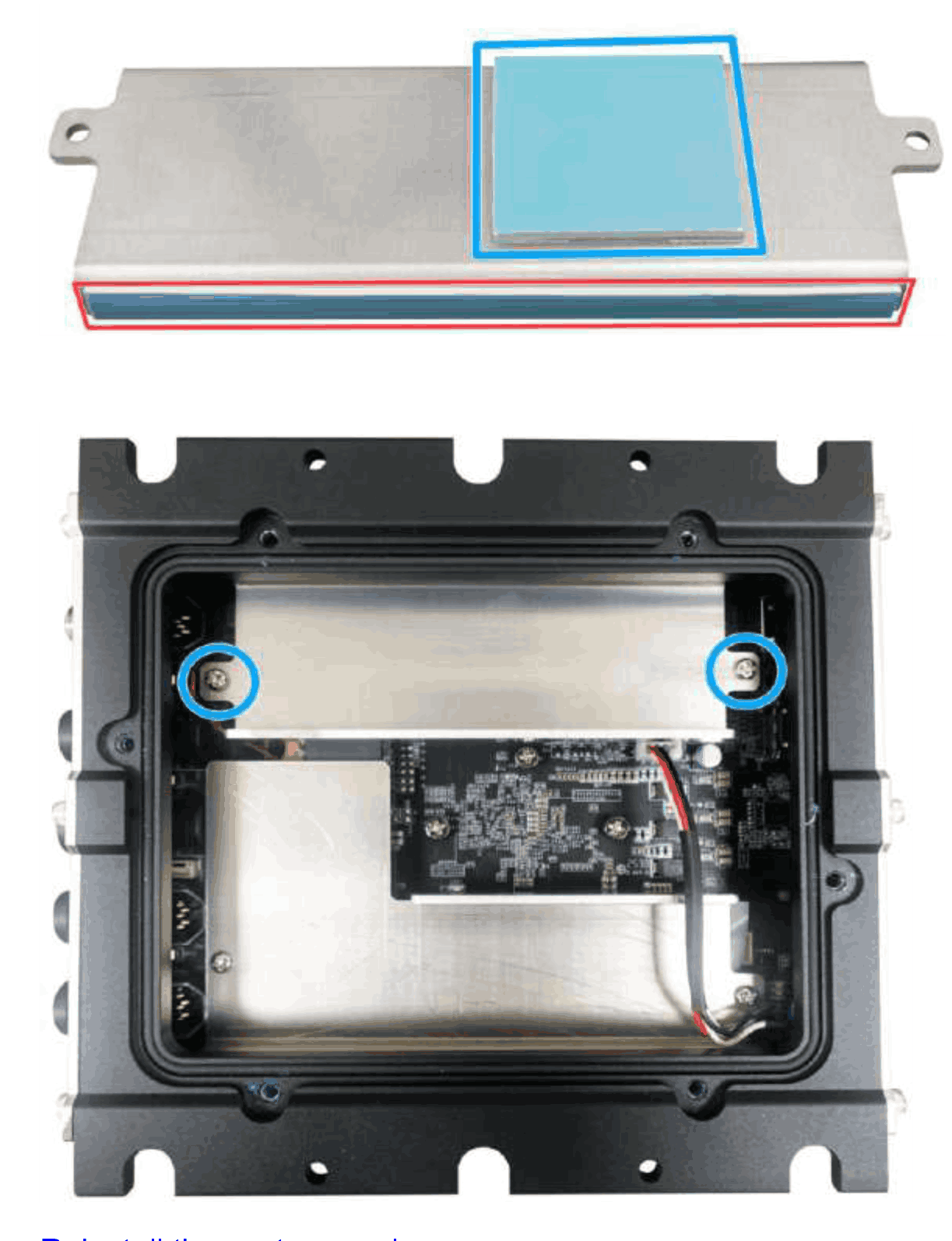

PCI / PCIe / mini-PCIe	1x full-size mini-PCI Express socket with internal micro SIM socket
Cooling System	Passive, fanless
Mounting	DIN-rail mount • Wall-mount
Power input	8V to 35V DC input with ignition power control input via M12 A-coded, 5-pin connector
Power consumption	TBA
Operating system	Option: Windows® 10 • LINUX 64Bit
Operating temperature	-25°C to 70°C
Storage temperature	-40°C to 85°C
Storage humidity	10% to 90%; non-condensing
Vibration	MIL-STD-810H, Method 514.8, Category 4
Shock	MIL-STD-810H, Method 516.8, Procedure I
Certificate	CE/FCC Class A, according to EN 55032 & EN 55035
Weight / kg	1.8

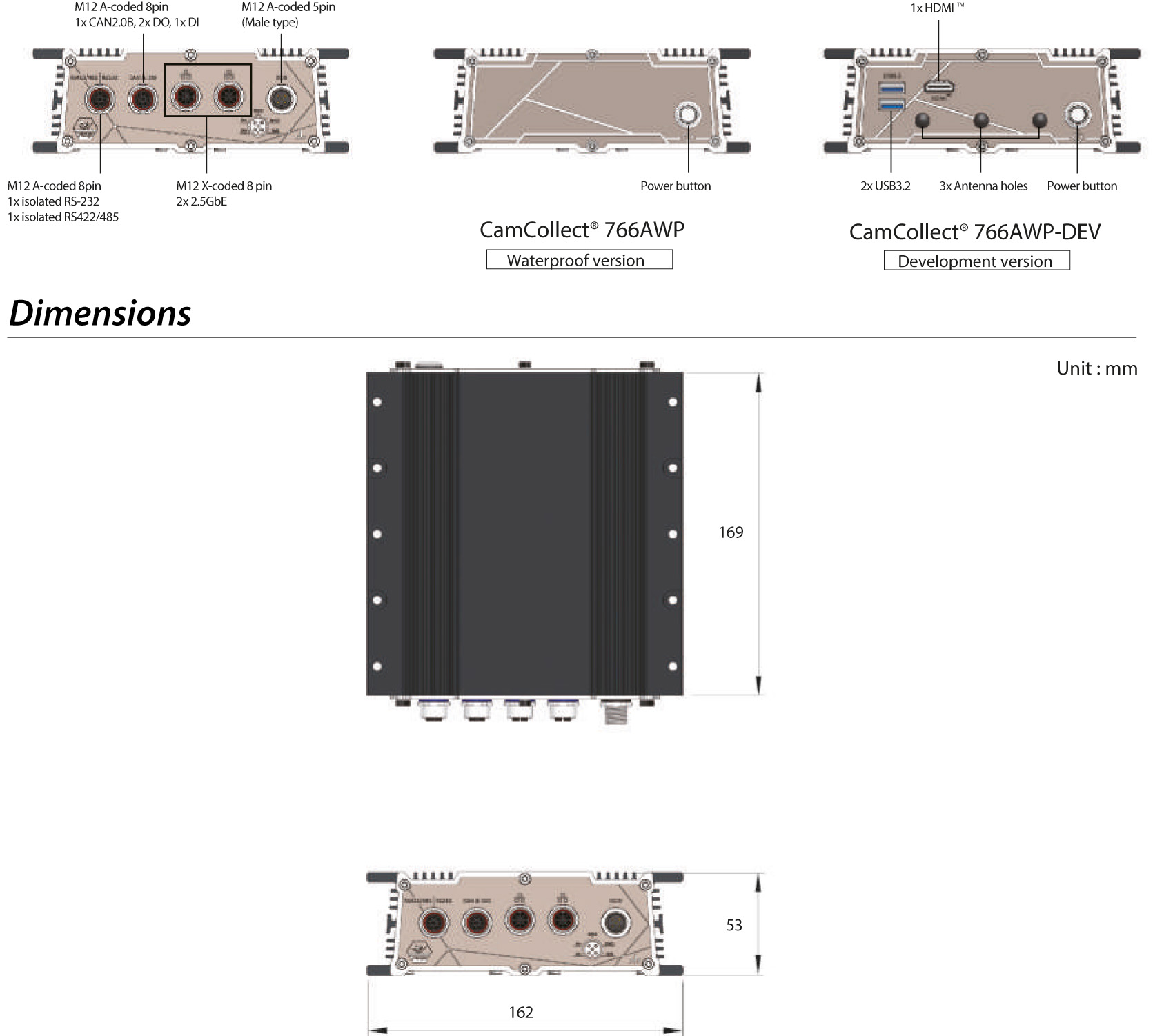

Dimensions / mm	161.5 x 169 x 52.7
Scope of delivery	Accessory Kit • DIN-rail Mount Kit
