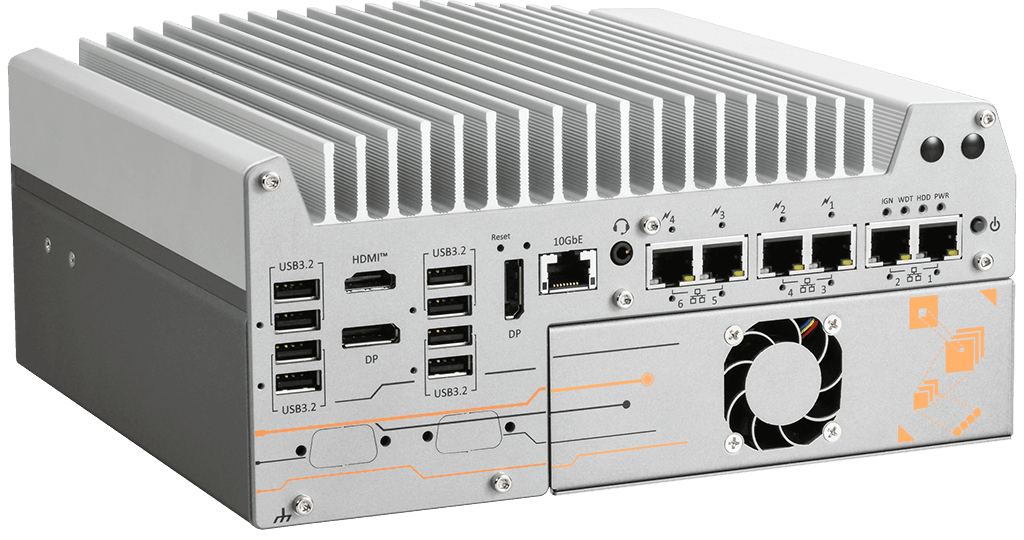

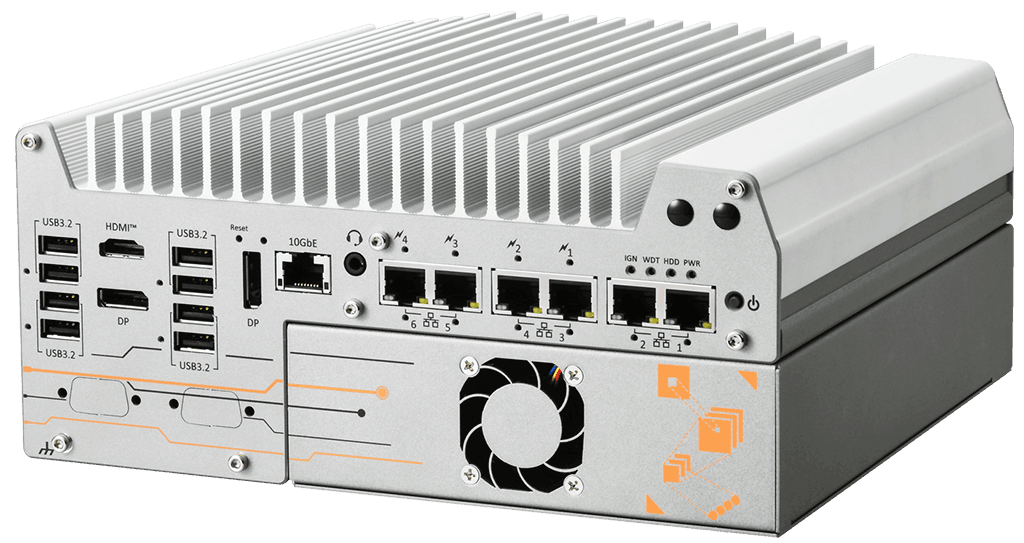

CamCollect® 11160 | Barebone [5x 2.5GigE, 1x GigE]

Edge AI Platform for NVIDIA® RTX-GPU • Intel® Core™ Ultra 200 series

The CamCollect® 11160 is APROtech‘s latest rugged, wide-temperature edge AI platform built on the Intel® Core™ Ultra 200S series processor with support for NVIDIA® RTX™ GPU cards up to 150W. With high-performance density and comprehensive I/O connectivity, it is ideal for demanding edge AI applications across both fixed and mobile deployments in indoor and outdoor environments, such as AI-driven vision inspection, video analysis and autonomous mobile robots.

Designed for demanding real-world applications, the CamCollect® 11160 simplifies the connection of required sensors and control devices with extensive I/O connectivity, while its compact form factor enables deployment in space-constrained environments. For stationary use cases such as vision-based robotic guidance, AI-driven vision inspection, and video analysis, it offers 8x USB3.2 Gen 2 ports and 6x GbE ports for multi-camera setups, 4-CH isolated DI and 4-CH isolated DO for factory automation integration, and an optional 10GbE port for high-bandwidth communication. For greater I/O and functionality, the MezIO® interface enables flexible expansion: the MezIO®-U4 adds 4 additional USB 3.1 ports, the MezIO®-G4 adds 4 additional GbE ports, and the MezIO®-D330 adds 16-CH DIO.

For more demanding mobile robots applications such as AMRs and outdoor delivery robots, the optional built-in PoE+ capability simplifies GigE camera deployment, while mini PCIe slots support 4G/5G module expansion for remote operation. A proven thermal design, featuring the expansion Cassette design with an upgraded GPU cooling fan, ensures reliable performance across a wide temperature range of -25°C to 60°C, making it well-suited for outdoor environments. On the power efficiency side, the Intel® Core™ Ultra 200S delivers 1.2x higher CPU performance while consuming only 80% of the power compared to the previous generation, enabling longer battery endurance for mobile robotics.

By integrating the latest Intel® Core™ Ultra 200S platform with up to 150W Blackwell GPU support, a rugged wide-temperature design, and flexible I/O expansion within a compact footprint, the CamCollect® 11160 is an ideal edge AI platform for both stationary and mobile applications.

Key facts	• Intel® Core™ Ultra 200 Series • Up to 128GB DDR5 • Option: PoE+, 10GigE • Supports NVIDIA® RTX 150W GPU • Digital I/O • Intel® vPro/ AMT 16.0
Protection class	IP20
CPU	Supports Intel® Core™ Ultra 200 series CPU (LGA 1851 socket), 35W and 65W TDP
Chipset	Intel® Q870E Platform Controller Hub
RAM	Up to 128 GB DDR5 6400 SDRAM (two SODIMM slots)
Storage interface	2x internal SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/1 • 1x M.2 2280 M key NVMe socket (PCIe Gen5x4) for NVMe SSD

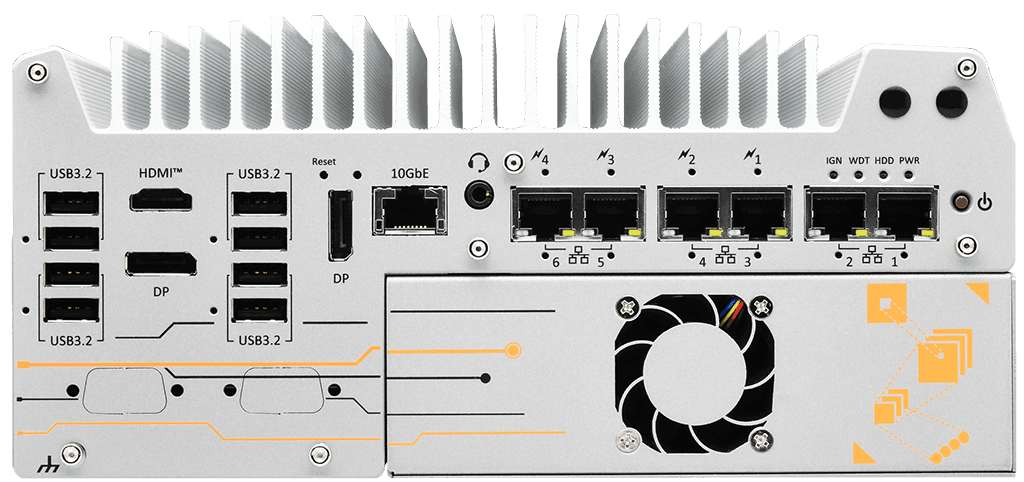

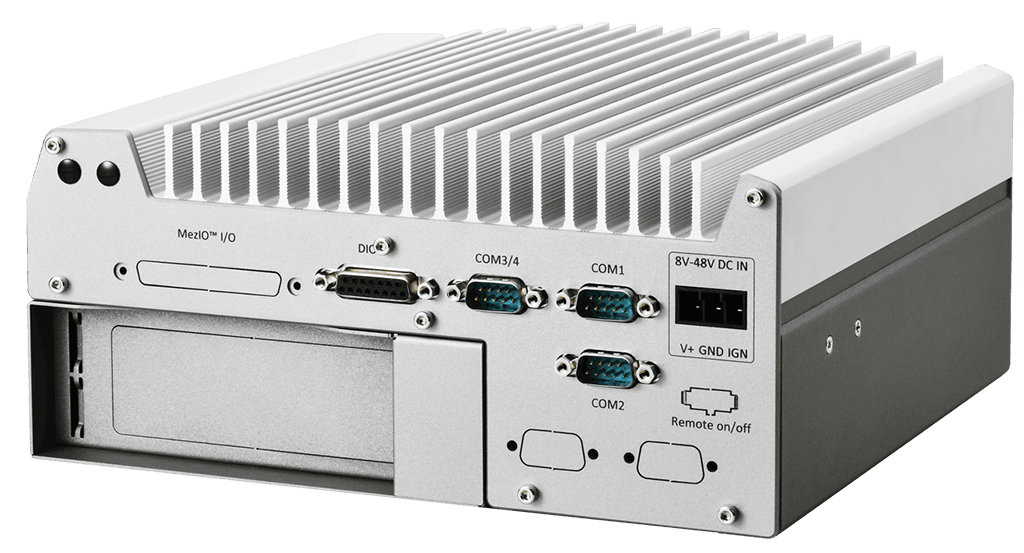

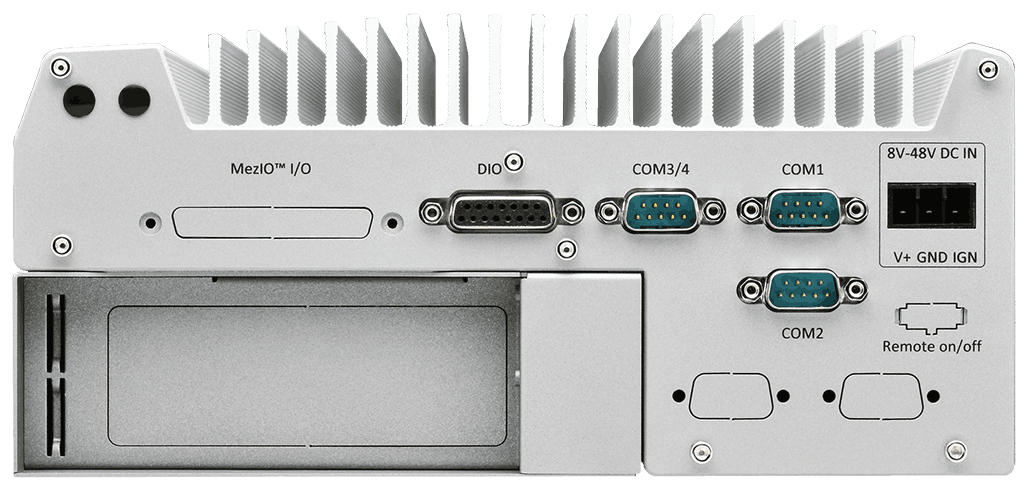

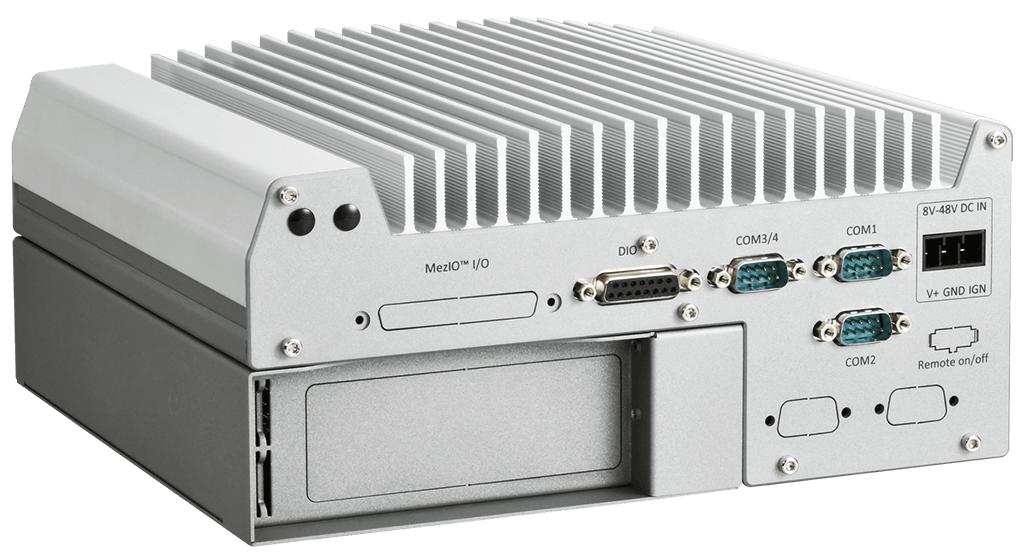

Ports	5x 2.5G Ethernet by I226-IT and 1x 1G Ethernet by I219-LM with screw-lock • 1x optional 10GBASE-T Ethernet • Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100W total power budget • 8x USB 3.2 Gen2 ports • 1x USB 2.0 port with Type-A connector (internal) • 2x software-programmable RS-232/ 422/ 485 ports (COM1/COM2) • 2x 3-wire RS-232 ports (COM3/COM4) • 1x HDMI™, supporting 3840 x 2160 resolution • 2x DisplayPort, supporting 4096 x 2304 resolution • 1x 3.5 mm jack for mic-in and speaker-out
PCI / PCIe / mini-PCIe	1x PCIe x16 slot@Gen4, 16-lanes PCIe signal in Cassette for installing NVIDIA® GPU up to150W (Max. graphics card dimension is 178 mm(L) x 128 mm(W), dual slot allocation) • 2x full-size mini-PCI Express socket
DIO	4-CH isolated DI and 4-CH isolated DO
MezIO™-interfaces	1x MezIO® expansion port
Cooling System	Active, GPU cooling fan
Mounting	Wall-mount • Damping bracket
Power input	1x 3-pin pluggable terminal block for 8 to 48V DC input, rated current 20A • 1x 10-pin (2x5) wafer connector for remote on/off control and status LED output
Operating system	Windows® 11 • LINUX 64Bit
Operating temperature	With 35W CPU and 150W GPU -25°C to 60°C • With 65W CPU and 150W GPU -25°C to 60°C (configured as 35W TDP); -25°C to 50°C] (configured as 65W TDP)
Storage temperature	-40° to 85°C
Storage humidity	10% to 90%; non-condensing
Vibration	Operating, MIL-STD-810H, Method 514.8, Category 4 (with optional damping bracket)
Shock	Operating, MIL-STD-810H, Method 516.8, Procedure I (with optional damping bracket)
Certificate	CE/FCC Klasse A, gemäß EN 55032 & EN 55035 (in Vorbereitung)
Weight / kg	3.89

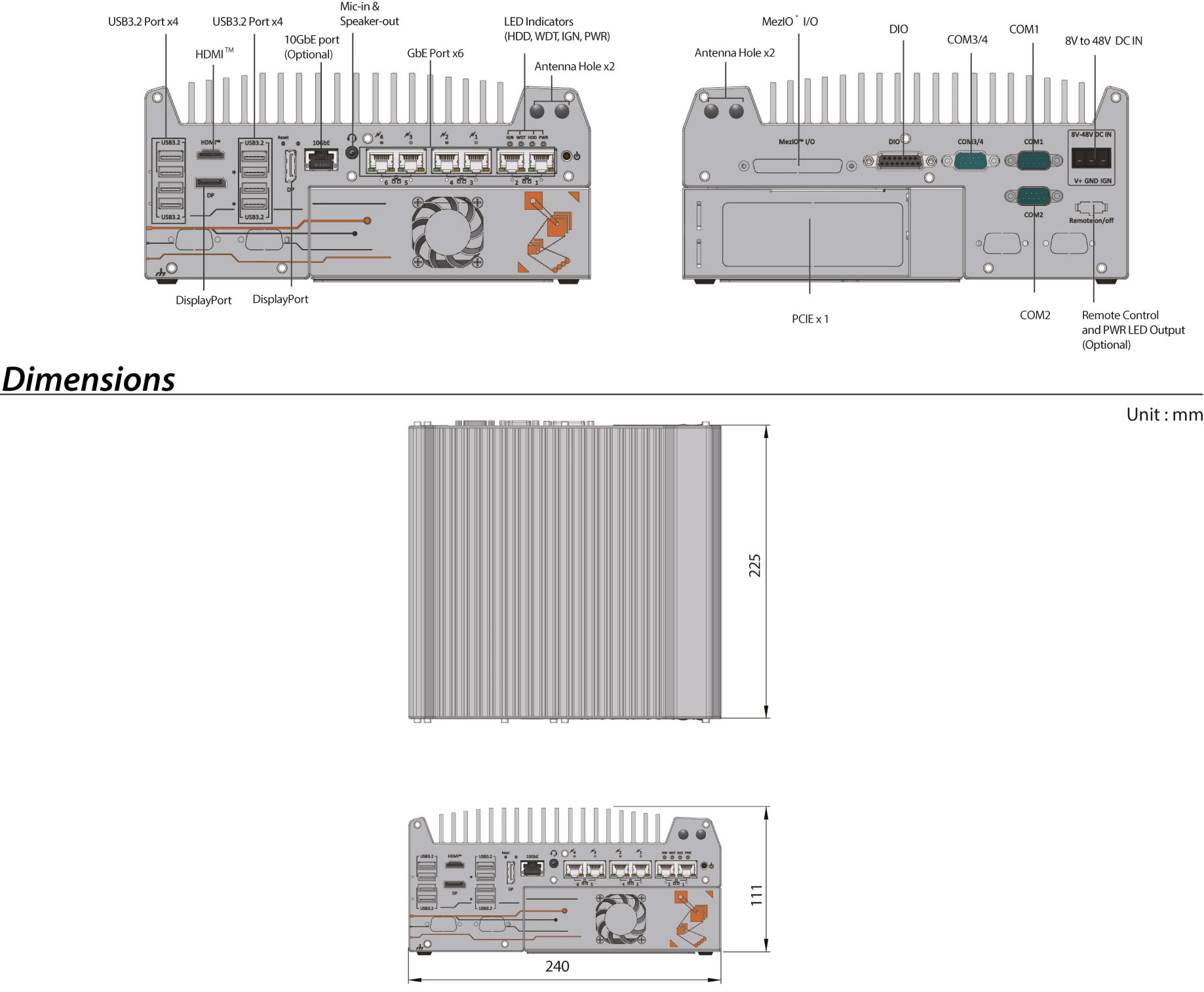

Dimensions / mm	240 x 225 x 111
Scope of delivery	Accessory Kit • DVI to VGA Adapter • Wall Mount Kit • Utility DVD Driver
